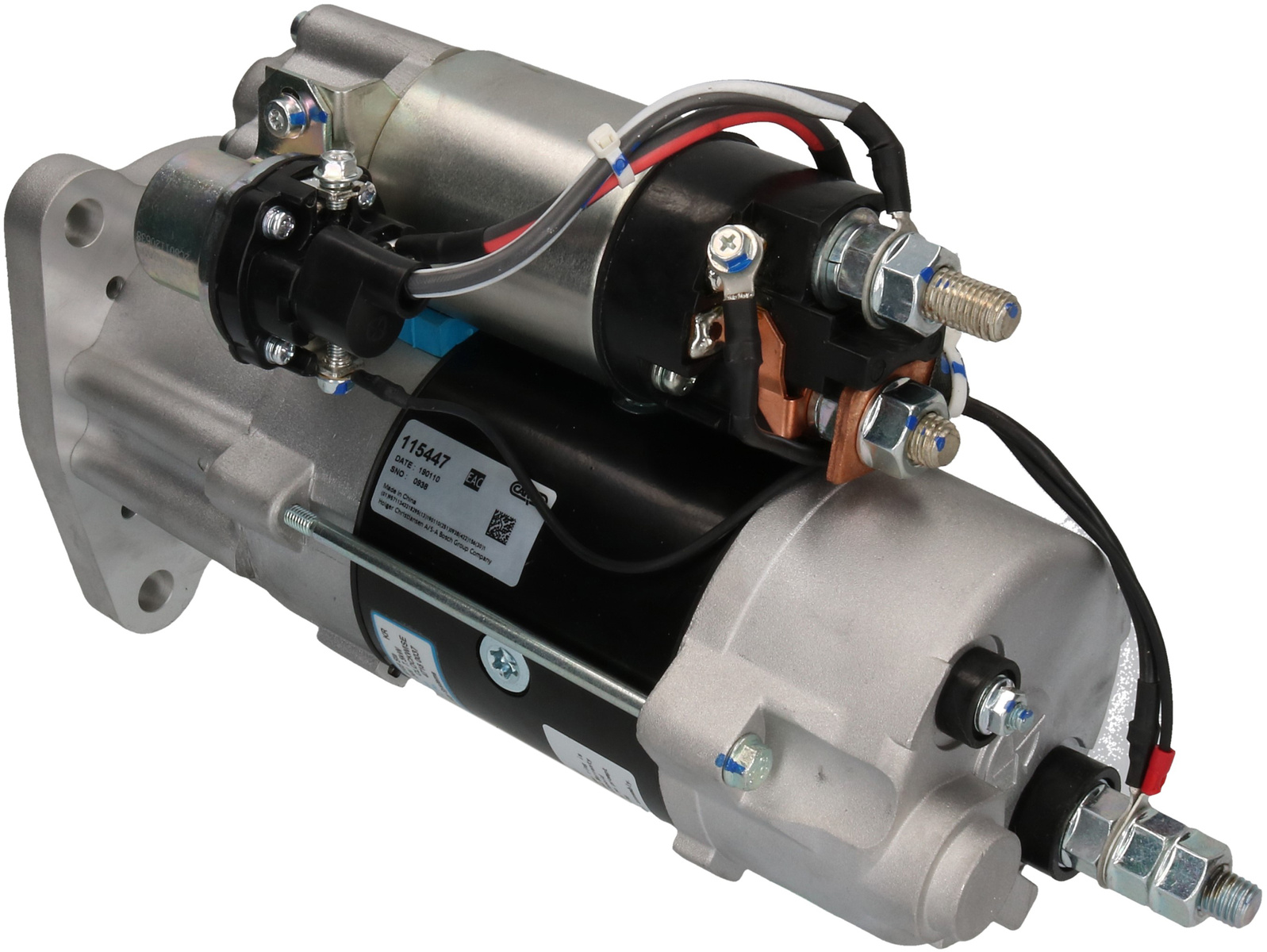

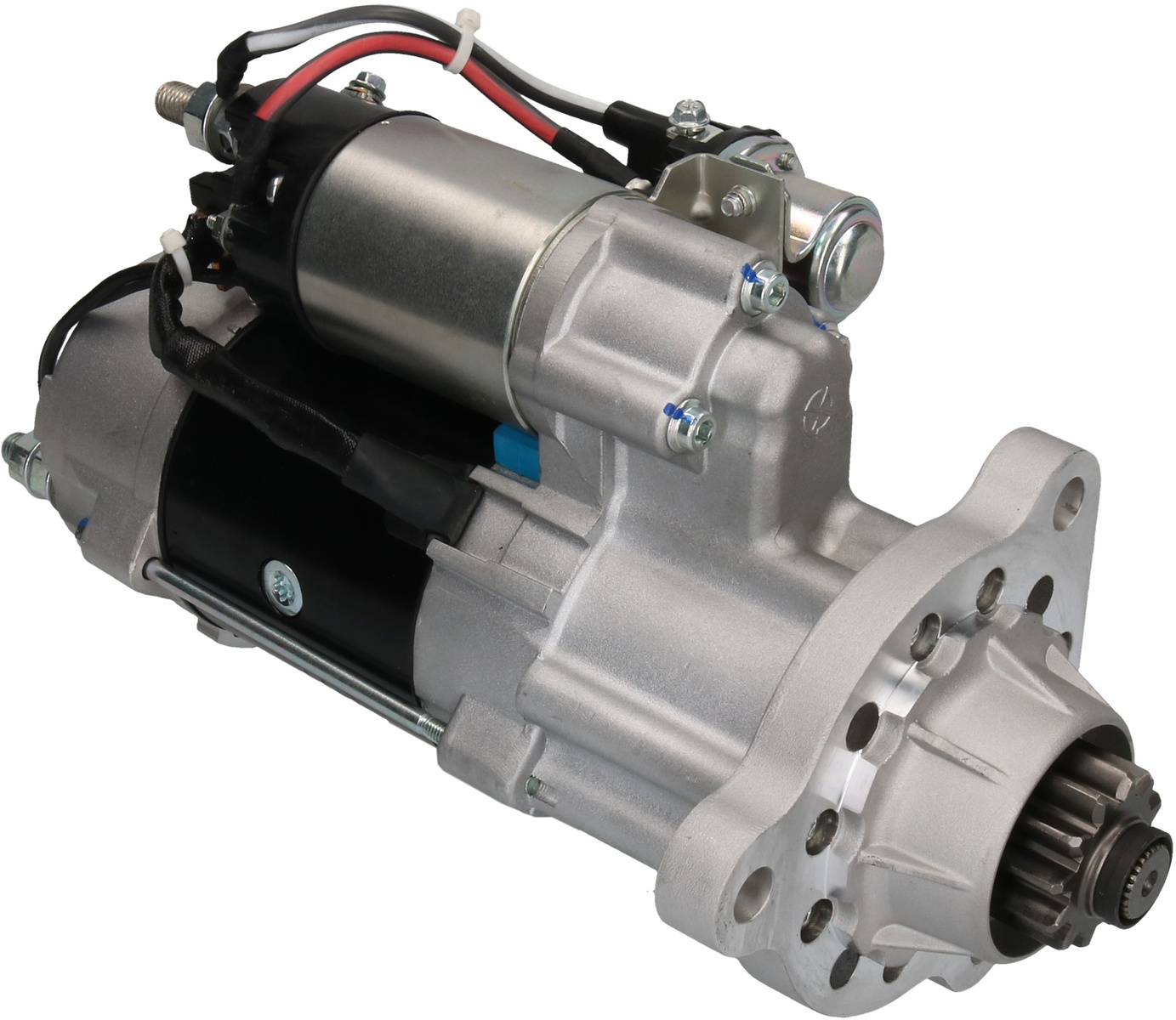

F032115447 - Starter

Trade number 115447
Product image - main
Trade number 115447

Details & description

Insulated return Yes, Voltage 24, kW 7.5, Mounting Hole 2 16.70, Rear Distance 310.00, Distance 3 126.50, Drive Distance 47.50, Distance 2 126.50, Mounting Flange 92.00, Distance 126.50, Mounting Hole 3 16.70, Oil sealed Yes, No./mount. holes 3 (0), Thread Length 34.00, Gear type GR, B- M12, Front Distance 55.00, No./teeth 12, B+ M12, Terminal 50 M5, Rotation CW, Mounting Hole 1 16.70, B+ Position 60, Total Length 413.00, Remarks Replacing: 39MT., Amount of Mounting Holes 3 (0)

Product information

Electrical information

  • Insulated returnYes
  • Voltage24
  • kW7.5

Catalogue information

  • Oil sealedYes
  • RemarksReplacing: 39MT.

Physical information

  • Mounting Hole 216.70
  • Rear Distance310.00
  • Distance 3126.50
  • Drive Distance47.50
  • Distance 2126.50
  • Mounting Flange92.00
  • Distance126.50
  • Mounting Hole 316.70
  • No./mount. holes3 (0)

    • Suggested Products

    Replacing and BOMs

    OEM number

    • M9T81971MITSUBISHI

    Competitor References

    • 255569AD KÜHNER
    • S1028AUTOSTARTER POLAND
    • F042S03126BOSCH
    • F042003126BOSCH
    • 641536123CV PSH
    • 811524123CV PSH
    • 641542123CV PSH
    • 115447HC-CARGO
    • 6823LESTER

    • Compatible products
