F032115437 - Alternator

Trade number 115437

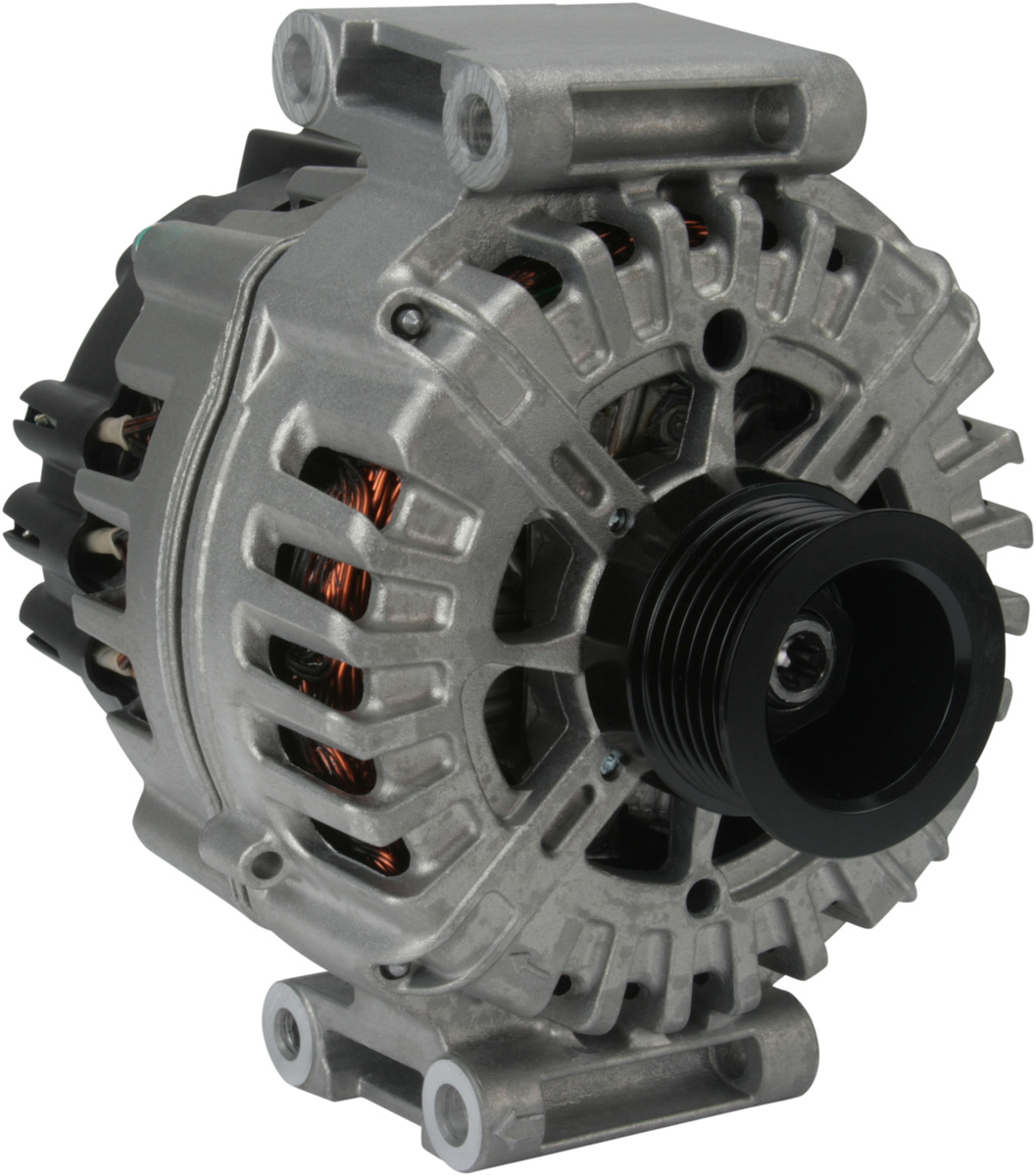

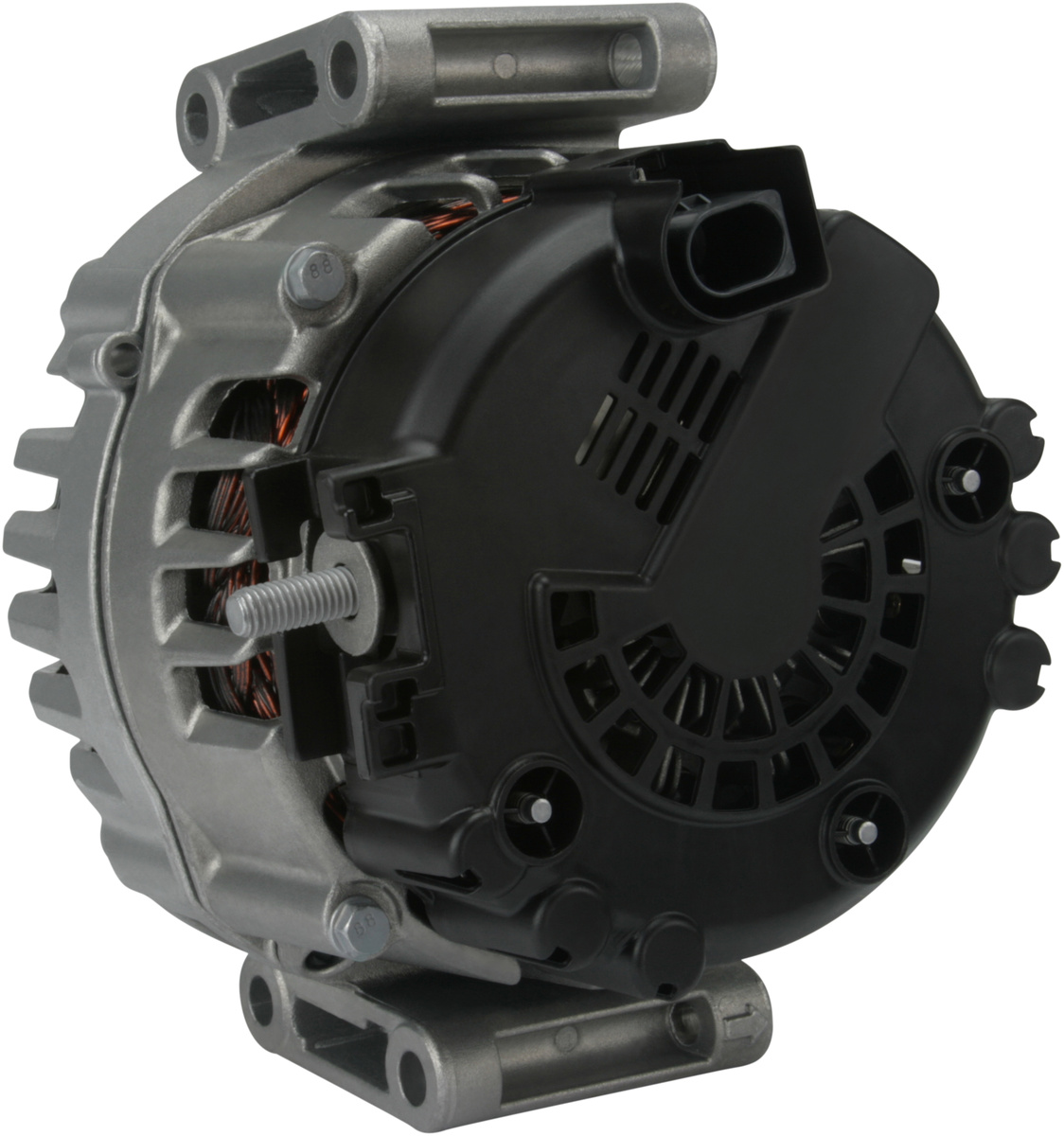

Product image - main
Trade number 115437

Details & description

Voltage 14, Amp 180, Pulley SP, Bracket Hole Size 1 9.20, Pulley Diameter 50.00, Prod. info BN/OE, Terminal type COM, Holder Arm Width 70.00, Pulley Distance 31.00, B+ M8, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Plug no. 1 PL86, Source Valeo, Mounting Bracket Distance 56.00, Rotation CW, Belt Adjustment Bracket Hole 1 9.20, Grooves/pulley 6, Regulator type IR, Position 52, B+ Position 45, Belt Adjustment Bracket Hole Position 60, Total Length 185.00

Product information

Electrical information

  • Voltage14
  • Amp180

Catalogue information

  • Prod. infoBN/OE
  • Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Physical information

  • PulleySP
  • Bracket Hole Size 19.20
  • Pulley Diameter50.00
  • Terminal typeCOM
  • Holder Arm Width70.00
  • Pulley Distance31.00
  • B+M8
  • Plug no. 1PL86
  • SourceValeo

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 0141543302MERCEDES-BENZ
    • A0141543302MERCEDES-BENZ
    • 0009067900MERCEDES-BENZ
    • A0009067900MERCEDES-BENZ

    Competitor References

    • DRA0954AC DELCO
    • 553445RIAD KÜHNER
    • A3167AUTOSTARTER POLAND
    • A3167VALEOAUTOSTARTER POLAND
    • A3436SAUTOSTARTER POLAND
    • 0986083660BOSCH
    • 0986CR6093BOSCH
    • CAL15422CASCO SRL
    • CAL15427CASCO SRL
