F032115429 - Alternator

Trade number 115429

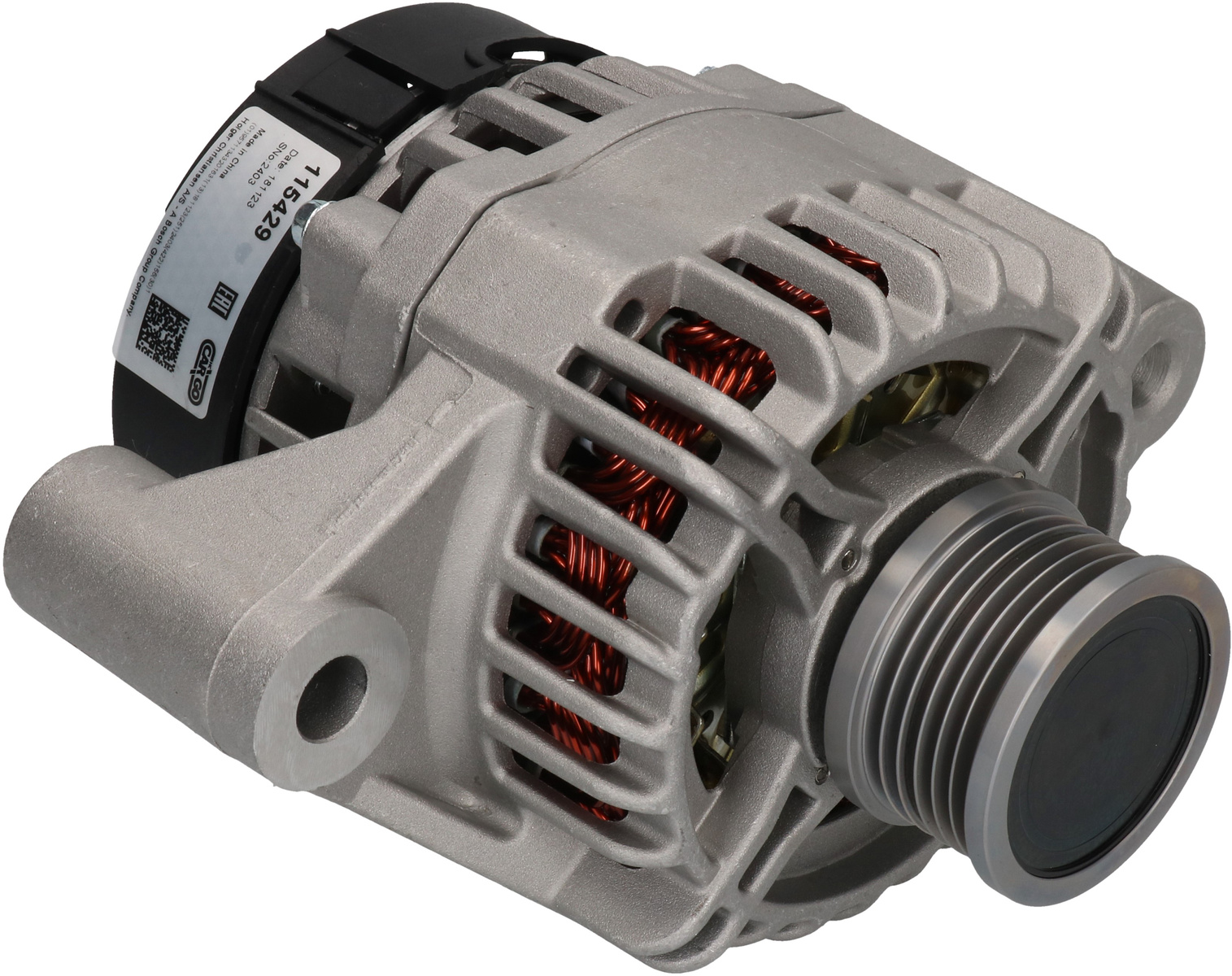

Product image - main
Trade number 115429

Details & description

Voltage 14, Amp 120, Pulley SP/FW, Bracket Hole Size 1 12.30, Pulley Diameter 54.00, Bracket Hole Size Rear 13.00, D+ Size M5, D+ Position 40, Holder Arm Width 61.00, Pulley Distance 113.00, B+ M8, Radius 2 90.00, Radius 90.00, Rotation CW, Belt Adjustment Bracket Hole 1 12.30, Grooves/pulley 6, Regulator type IR, B+ Position 45, Belt Adjustment Bracket Hole Position 60, Total Length 202.00

Product information

Electrical information

  • Voltage14
  • Amp120

Physical information

  • PulleySP/FW
  • Bracket Hole Size 112.30
  • Pulley Diameter54.00
  • Bracket Hole Size Rear13.00
  • D+ SizeM5
  • D+ Position40
  • Holder Arm Width61.00
  • Pulley Distance113.00
  • B+M8

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 51854898ALFA ROMEO
    • 51793678FIAT
    • 51817369FIAT
    • 51854898FIATBOM
    • 51854899FIAT
    • 51854902FIAT
    • 51820624FIATBOM
    • 52003507FIAT
    • 52003616FIAT

    • Competitor References

    • DRA0723AC DELCO
    • DRA0929AC DELCO
    • 553510RIAD KÜHNER
    • 553433RIAD KÜHNER
    • A6075AUTOSTARTER POLAND
    • A6059AUTOSTARTER POLAND
    • A6059DENSOAUTOSTARTER POLAND
    • A6075DENSOAUTOSTARTER POLAND
    • A6107AUTOSTARTER POLAND
