F032115413 - Alternator

Trade number 115413

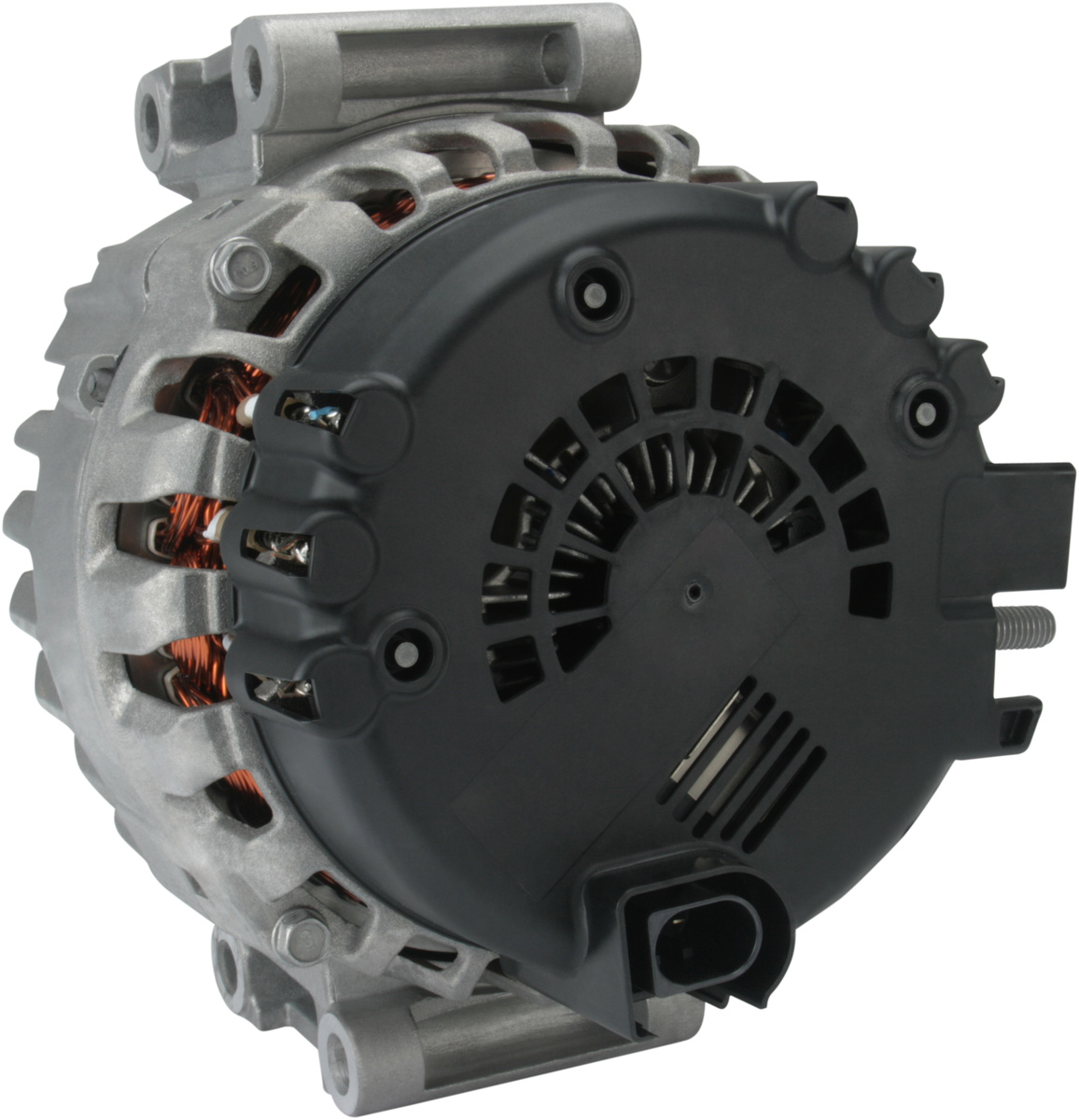

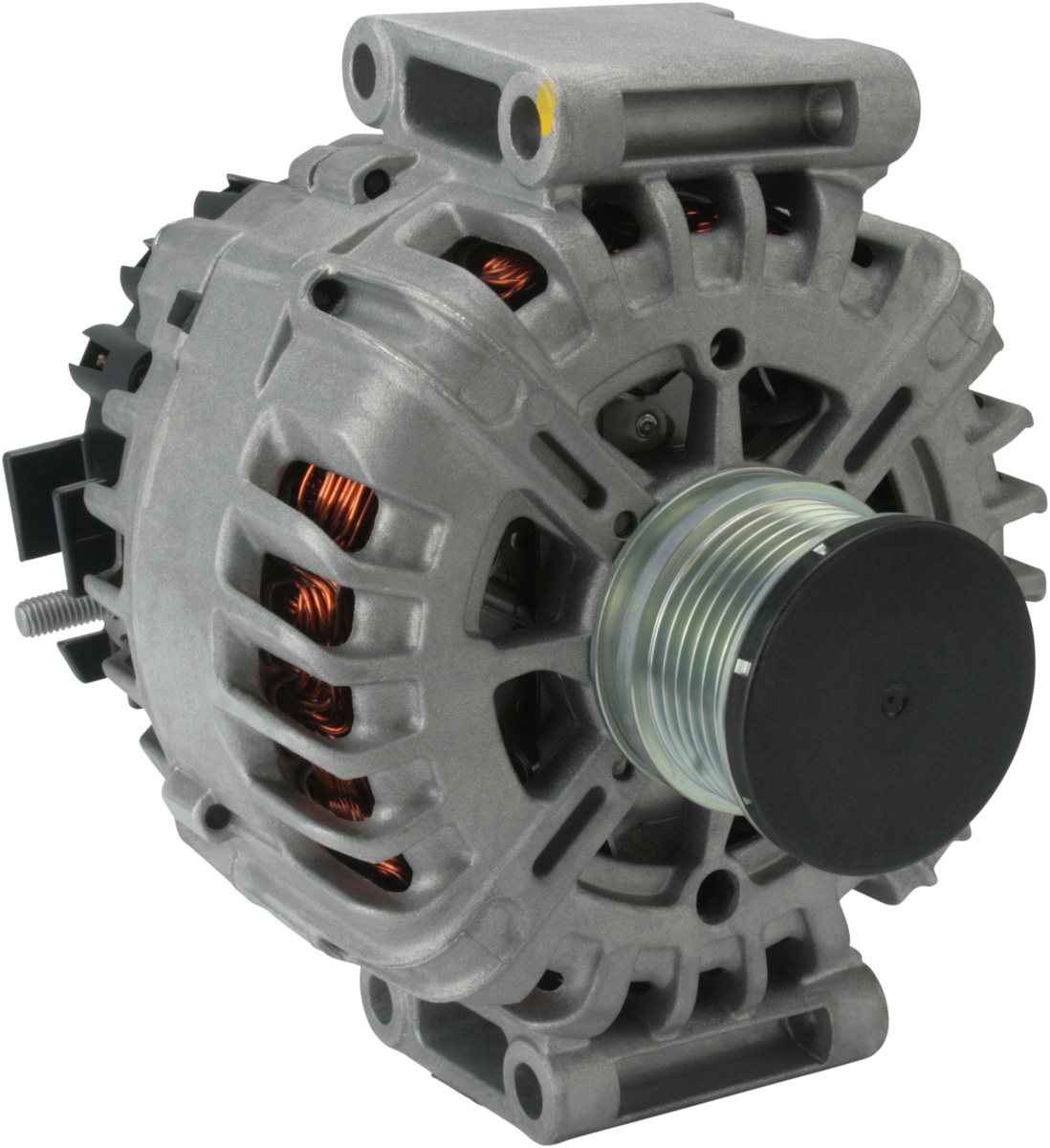

Product image - main
Trade number 115413

Details & description

Voltage 14, Amp 220, Communication LIN, Pulley SP/FW, Bracket Hole Size 1 9.50, Pulley Diameter 49.50, Prod. info BN, Terminal type COM, Holder Arm Width 70.00, Pulley Distance 31.50, B+ M8, Fan IF, Radius 2 81.00, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Plug no. 1 PL86, Mounting Bracket Distance 56.20, Radius 81.00, Rotation CW, Belt Adjustment Bracket Hole 1 9.50, Grooves/pulley 6, Regulator type IR, B+ Position 46, Total Length 195.00

Product information

Electrical information

  • Voltage14
  • Amp220

Catalogue information

  • Prod. infoBN
  • Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Physical information

  • CommunicationLIN
  • PulleySP/FW
  • Bracket Hole Size 19.50
  • Pulley Diameter49.50
  • Terminal typeCOM
  • Holder Arm Width70.00
  • Pulley Distance31.50
  • B+M8
  • FanIF

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 6461540802MERCEDES-BENZ
    • A6461540802MERCEDES-BENZ

    Competitor References

    • DRA0688AC DELCO
    • 553359RIAD KÜHNER
    • A3277AUTOSTARTER POLAND
    • 0986083600BOSCH
    • CAL15352CASCO SRL
    • 555587220CV PSH
    • DRA0688DELCO REMY
    • 2251852202DRI
    • 285826ELSTOCK
