F032115409 - Alternator

Trade number 115409

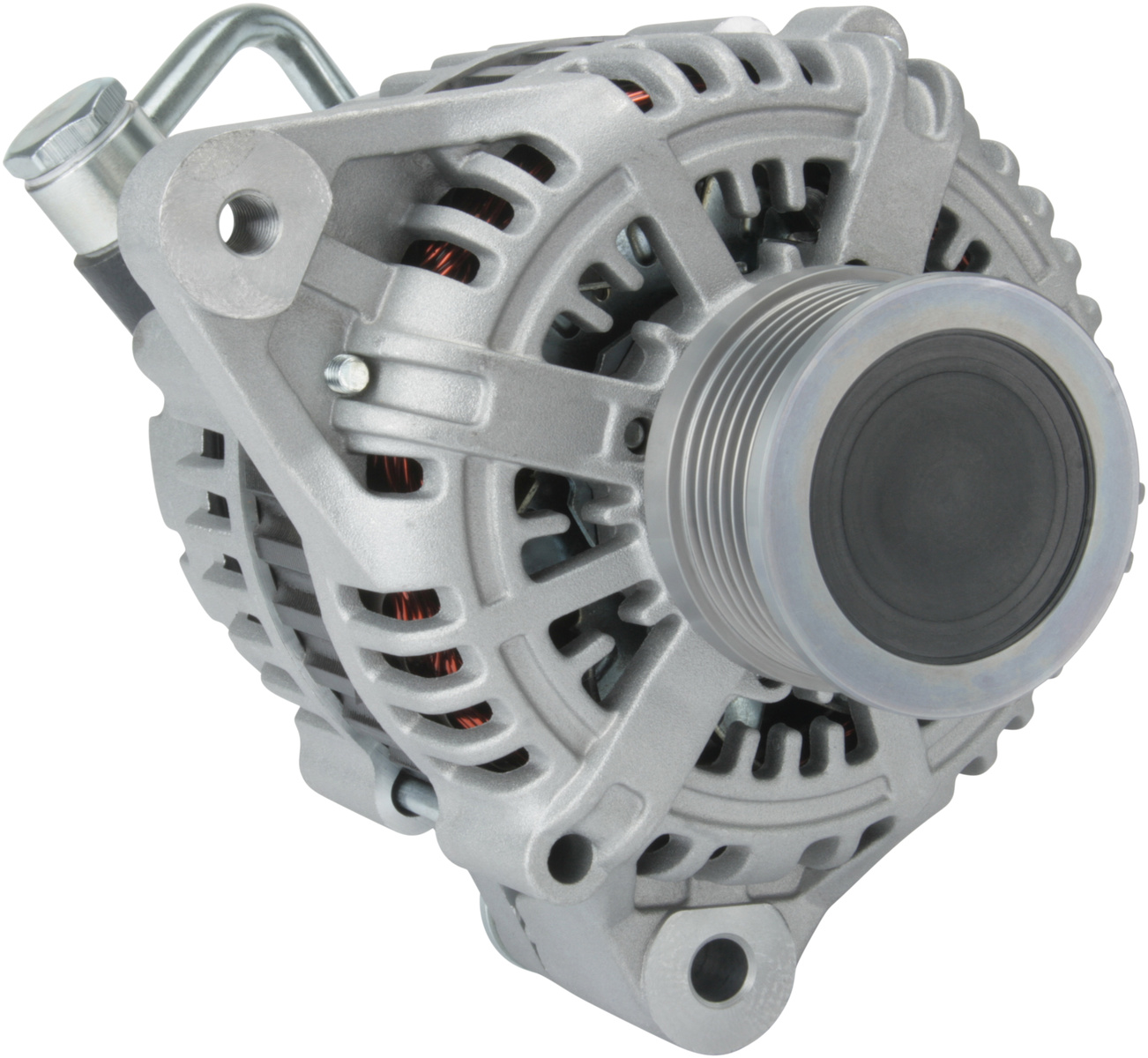

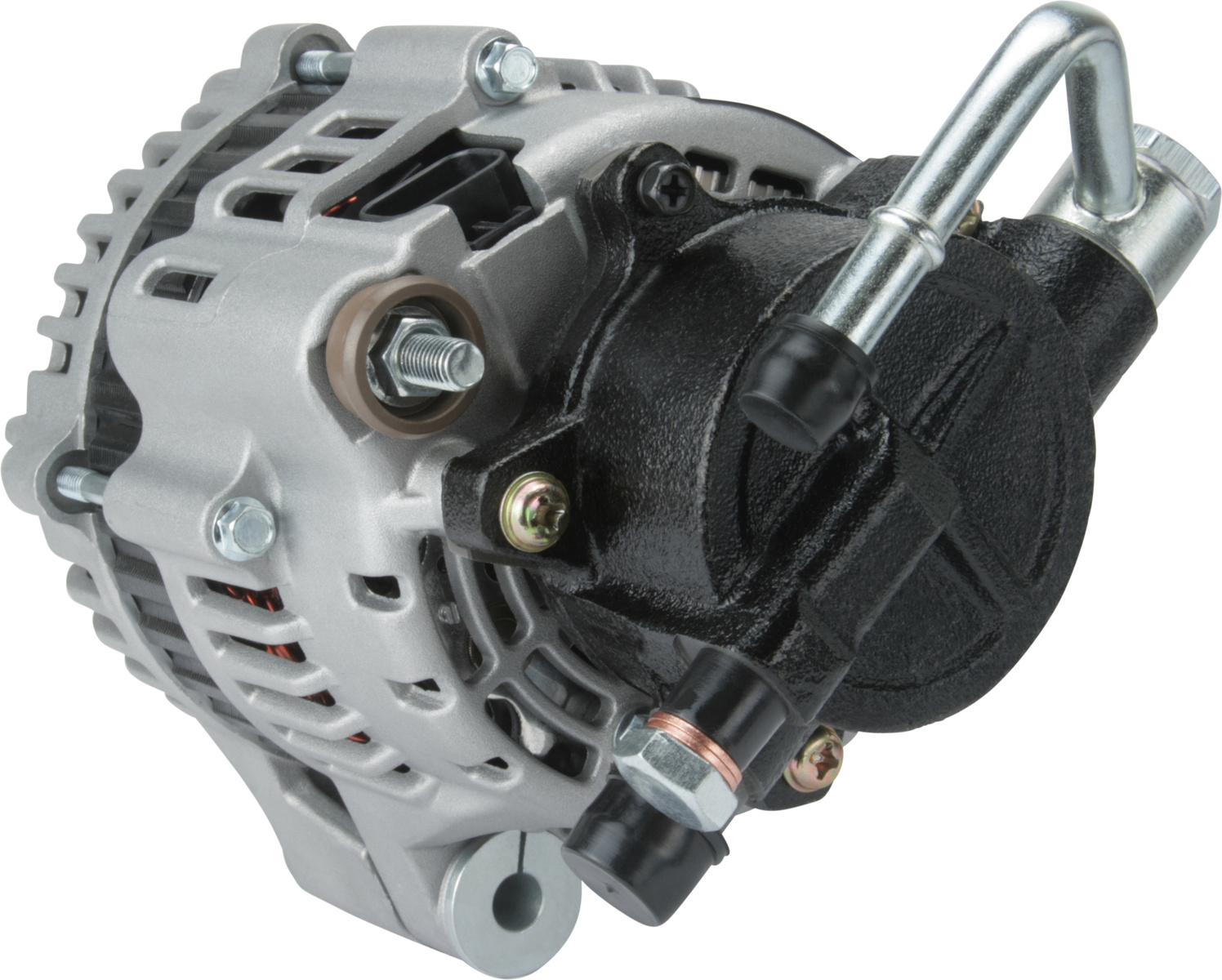

Product image - main
Trade number 115409

Details & description

Voltage 14, Amp 120, Pulley SP/FW, Bracket Hole Size 1 10.50, Pulley Diameter 59.70, Prod. info BN, Vacumm Pump Position 8, Holder Arm Width 63.00, Nipple Vaccum Pump Position 34, Pulley Distance 103.00, Vac. pump Yes, B+ M8, Radius 2 92.50, Plug no. 1 PL07, Radius 83.00, Rotation CW, Belt Adjustment Bracket Hole 1 M10, Grooves/pulley 6, Regulator type IR, B+ Position 46, Belt Adjustment Bracket Hole Position 50

Product information

Electrical information

  • Voltage14
  • Amp120

Catalogue information

  • Prod. infoBN
  • Vac. pumpYes

Physical information

  • PulleySP/FW
  • Bracket Hole Size 110.50
  • Pulley Diameter59.70
  • Vacumm Pump Position8
  • Holder Arm Width63.00
  • Nipple Vaccum Pump Position34
  • Pulley Distance103.00
  • B+M8
  • Radius 292.50

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 3730027020HYUNDAIBOM
    • 3730027021HYUNDAI

    Competitor References

    • DRA0243AC DELCO
    • DRA0243NAC DELCO
    • 302018RIAD KÜHNER
    • A3173AUTOSTARTER POLAND
    • A3173VALEOAUTOSTARTER POLAND
    • A6223DENSOAUTOSTARTER POLAND
    • CAL32139CASCO SRL
    • 9405CEVAM
    • 155611120CV PSH
