F032115373 - Alternator

Trade number 115373

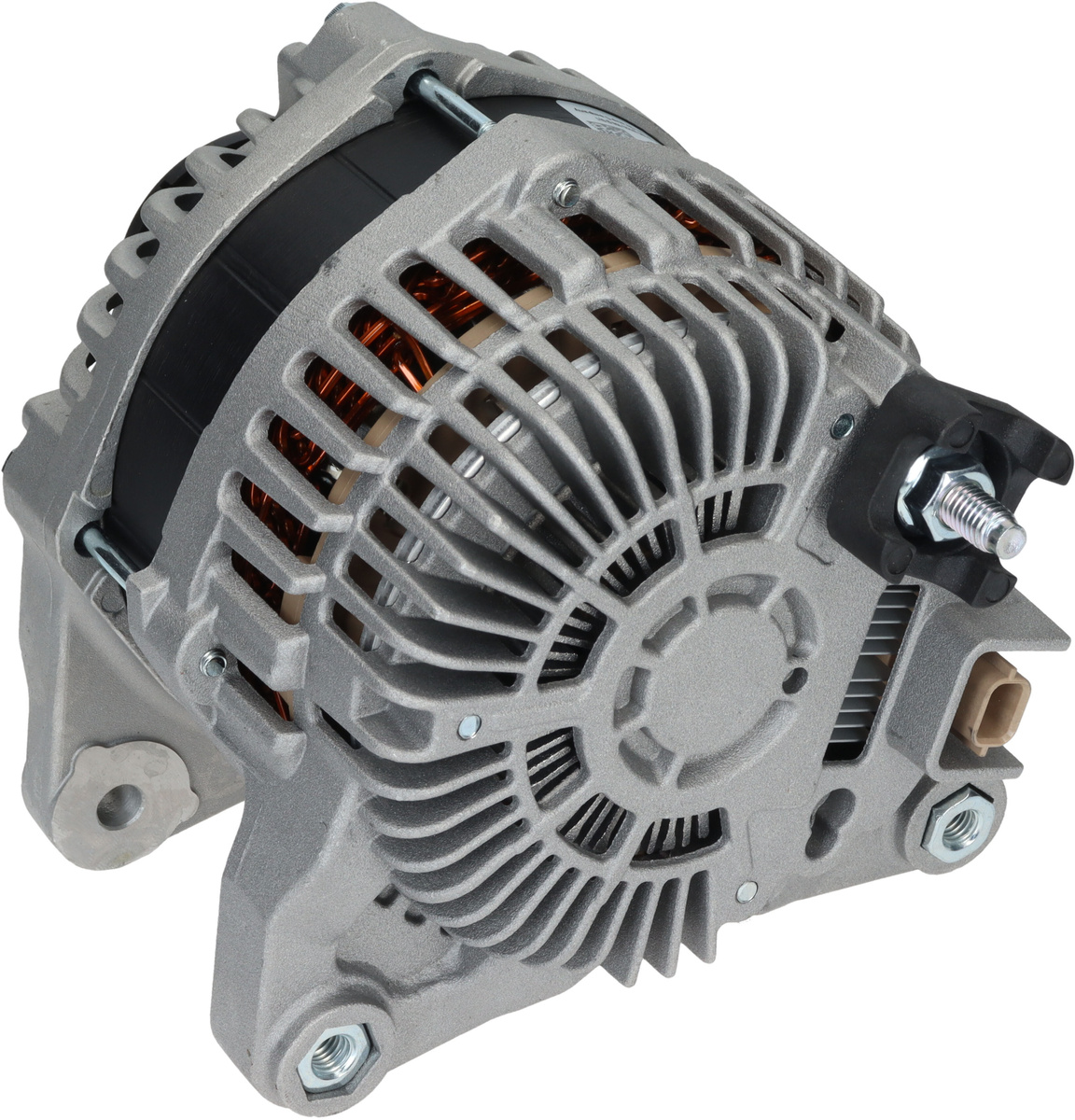

Product image - main
Trade number 115373

Details & description

Voltage 14, Amp 150, Communication BSS, Pulley SP/FW, Pulley Diameter 49.00, Bracket Hole Size Rear M8, Pulley Distance 33.00, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 62.00, Radius 90.00, Belt Adjustment Bracket Hole 1 8.50, Grooves/pulley 7, Regulator type IR, Bracket Hole Size 1 8.50, Terminal type COM, Holder Arm Width 14.50, B+ M8, Fan IF, Radius 2 90.00, Plug no. 1 PL124, Rotation CW, B+ Position 2, Belt Adjustment Bracket Hole Position 45, Total Length 194.00

Product information

Electrical information

  • Voltage14
  • Amp150

Catalogue information

  • Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Physical information

  • CommunicationBSS
  • PulleySP/FW
  • Pulley Diameter49.00
  • Bracket Hole Size RearM8
  • Pulley Distance33.00
  • Mounting Bracket Distance62.00
  • Radius90.00
  • Belt Adjustment Bracket Hole 18.50
  • Grooves/pulley7
  • Suggested Products

    Replacing and BOMs

    OEM number

    • A002TX0481MITSUBISHI
    • A2TX0481MITSUBISHI
    • 231000024RNISSAN
    • 231000024RRENAULT
    • 7711497596RENAULT

    Competitor References

    • CAL35314CASCO SRL
    • 575919150CV PSH
    • 2303581502DRI
    • 286847ELSTOCK
    • 115373HC-CARGO
    • 24252NWAI
