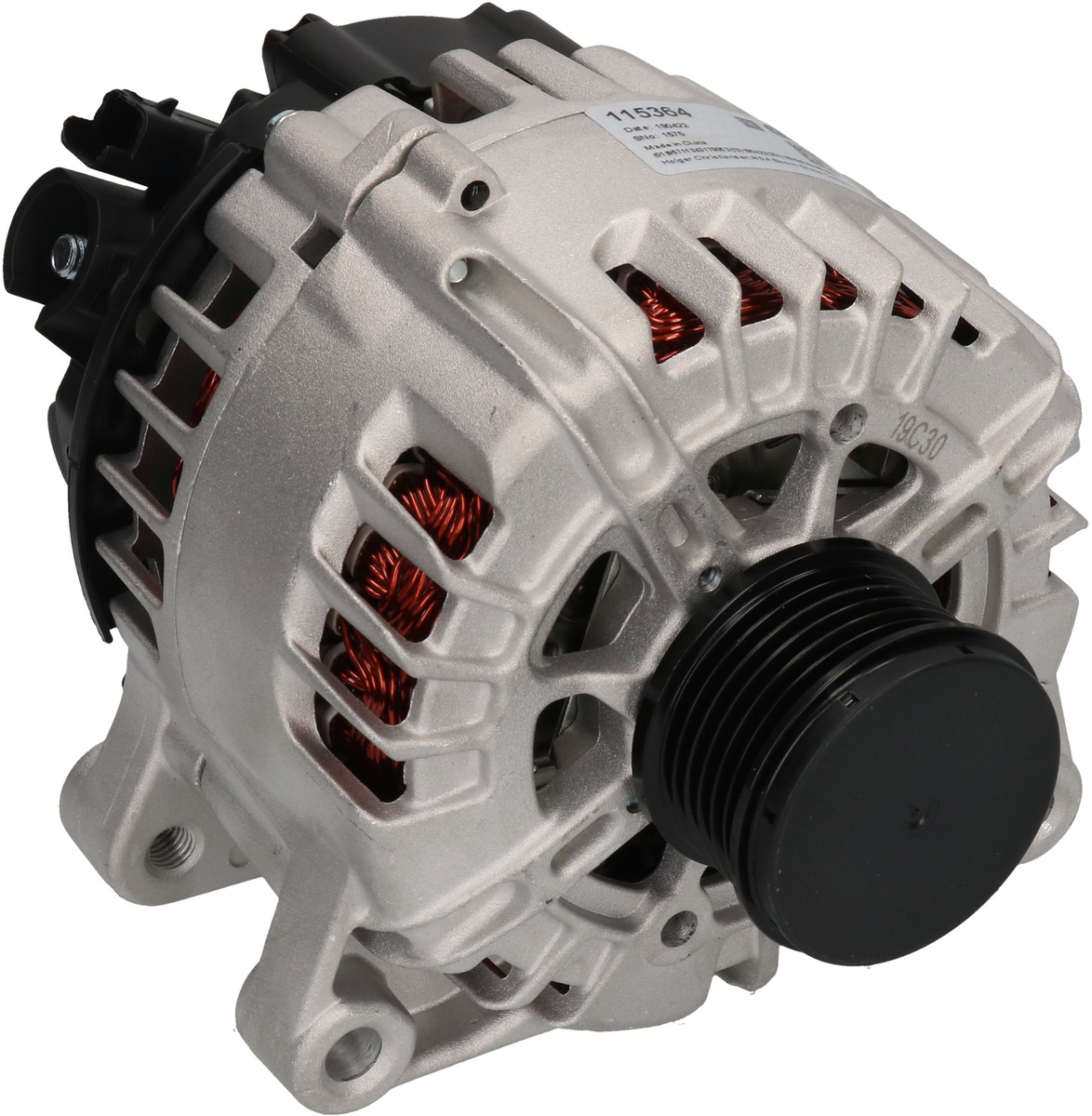

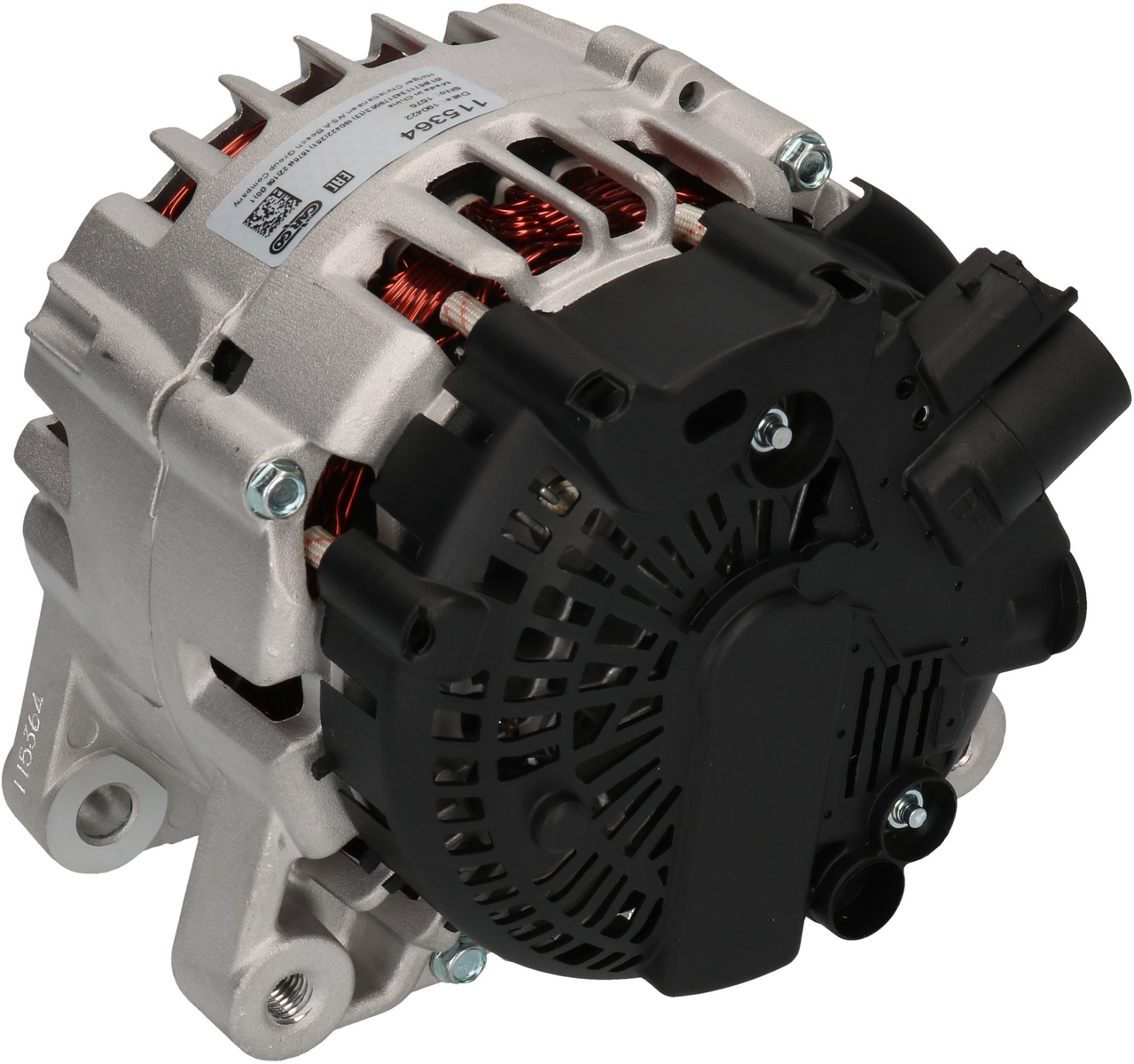

F032115364 - Alternator
Trade number 115364
Replacing and BOMs
OEM number
9678048880FIAT
K9678048880FIAT
1800A350MITSUBISHI
5702J9PEUGEOT
5705KVPEUGEOT
9664779680PEUGEOT
9678048880PEUGEOT
9810525380PEUGEOT
9803049980PEUGEOT
TG15S205PEUGEOT
9678058680PEUGEOT
Competitor References
DRA0895AC DELCO
553786RIAD KÜHNER
302033RIAD KÜHNER
A3210AUTOSTARTER POLAND
A3210PRAUTOSTARTER POLAND
A3210VALEOAUTOSTARTER POLAND
0986082240BOSCH
0986084640BOSCH
1986A00572BOSCH
1986A00600BOSCH
CAL15414CASCO SRL
CAL15559CASCO SRL
CAL15585CASCO SRL
4892CEVAM
225549150CV PSH
225557150CV PSH
DRA0895DELCO REMY
2291511502DRI
286567ELSTOCK
209433ERA SPA
210717ERA SPA
209433AERA SPA
210717AERA SPA
12090499EUROTEC
9090610FRIESEN
115364HC-CARGO
CA2033IRHC-PARTS
8EL738213191HELLA
8EL012430091HELLA
32082240HERTH U. BUSS
LRA03457LUCAS
2605547AVALEO
2614016AVALEO
2621087AVALEO
439804VALEO
2624310AVALEO
FG15C189VALEO
440458VALEO
439701VALEO
439933VALEO
440286VALEO
440677VALEO
2618013AVALEO
2618013CVALEO
2618013VALEO
2624310BVALEO
200195VALEO
200273VALEO
20256NWAI
20256NOEWAI
20256RWAI
20667NWAI
VALTG15S205WOOD AUTO SUPPL
F032115364 - Alternator
Details & description
Voltage 14, Amp 150, Communication LIN, Pulley SP/FW, Pulley Diameter 54.50, Bracket Hole Size Rear M10, Pulley Distance 42.50, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 45.50, Radius 90.00, Belt Adjustment Bracket Hole 1 10.50, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 10.00, Belt Adjustment Bracket Hole 2 M10, Terminal type COM, Holder Arm Width 21.00, B+ M8, Fan IF, Radius 2 90.00, Plug no. 1 PL132, Rotation CW, B+ Position 1, Belt Adjustment Bracket Hole Position 47, Total Length 180.00
Product information
Voltage:14
Amp:150
Communication:LIN
Pulley:SP/FW
Pulley Diameter:54.50
Bracket Hole Size Rear:M10
Pulley Distance:42.50
Remarks 3:This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Mounting Bracket Distance:45.50
Radius:90.00
Belt Adjustment Bracket Hole 1:10.50
Grooves/pulley:6
Regulator type:IR
Bracket Hole Size 1:10.00
Belt Adjustment Bracket Hole 2:M10
Terminal type:COM
Holder Arm Width:21.00
B+:M8
Fan:IF
Radius 2:90.00
Plug no. 1:PL132
Rotation:CW
B+ Position:1
Belt Adjustment Bracket Hole Position:47
Total Length:180.00
Replacing and BOMs
OEM number
9678048880FIAT
K9678048880FIAT
1800A350MITSUBISHI
5702J9PEUGEOT
5705KVPEUGEOT
9664779680PEUGEOT
9678048880PEUGEOT
9810525380PEUGEOT
9803049980PEUGEOT
TG15S205PEUGEOT
9678058680PEUGEOT
Competitor References
DRA0895AC DELCO
553786RIAD KÜHNER
302033RIAD KÜHNER
A3210AUTOSTARTER POLAND
A3210PRAUTOSTARTER POLAND
A3210VALEOAUTOSTARTER POLAND
0986082240BOSCH
0986084640BOSCH
1986A00572BOSCH
1986A00600BOSCH
CAL15414CASCO SRL
CAL15559CASCO SRL
CAL15585CASCO SRL
4892CEVAM
225549150CV PSH
225557150CV PSH
DRA0895DELCO REMY
2291511502DRI
286567ELSTOCK
209433ERA SPA
210717ERA SPA
209433AERA SPA
210717AERA SPA
12090499EUROTEC
9090610FRIESEN
115364HC-CARGO
CA2033IRHC-PARTS
8EL738213191HELLA
8EL012430091HELLA
32082240HERTH U. BUSS
LRA03457LUCAS
2605547AVALEO
2614016AVALEO
2621087AVALEO
439804VALEO
2624310AVALEO
FG15C189VALEO
440458VALEO
439701VALEO
439933VALEO
440286VALEO
440677VALEO
2618013AVALEO
2618013CVALEO
2618013VALEO
2624310BVALEO
200195VALEO
200273VALEO
20256NWAI
20256NOEWAI
20256RWAI
20667NWAI
VALTG15S205WOOD AUTO SUPPL
