F032114897 - Alternator

Trade number 114897

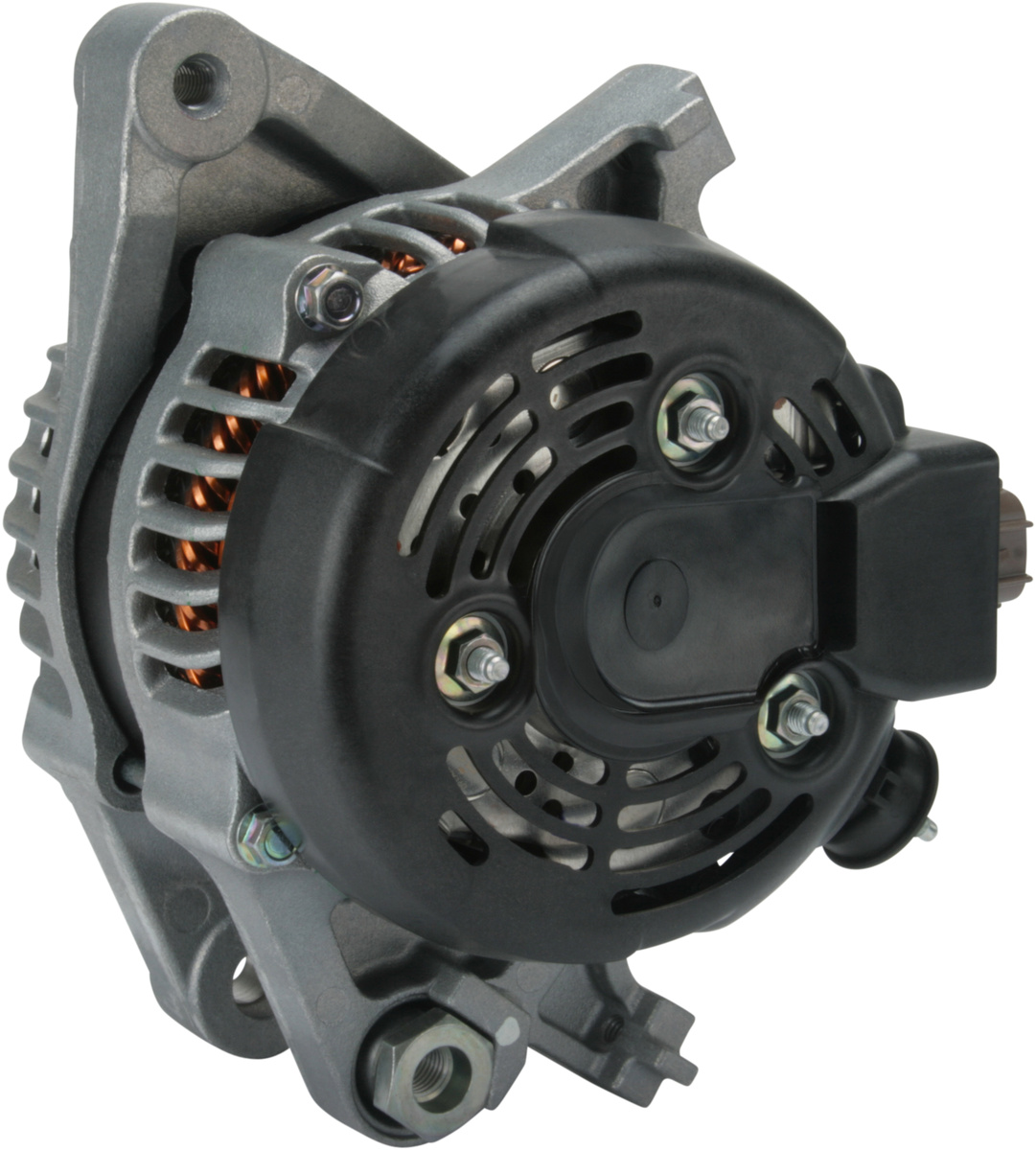

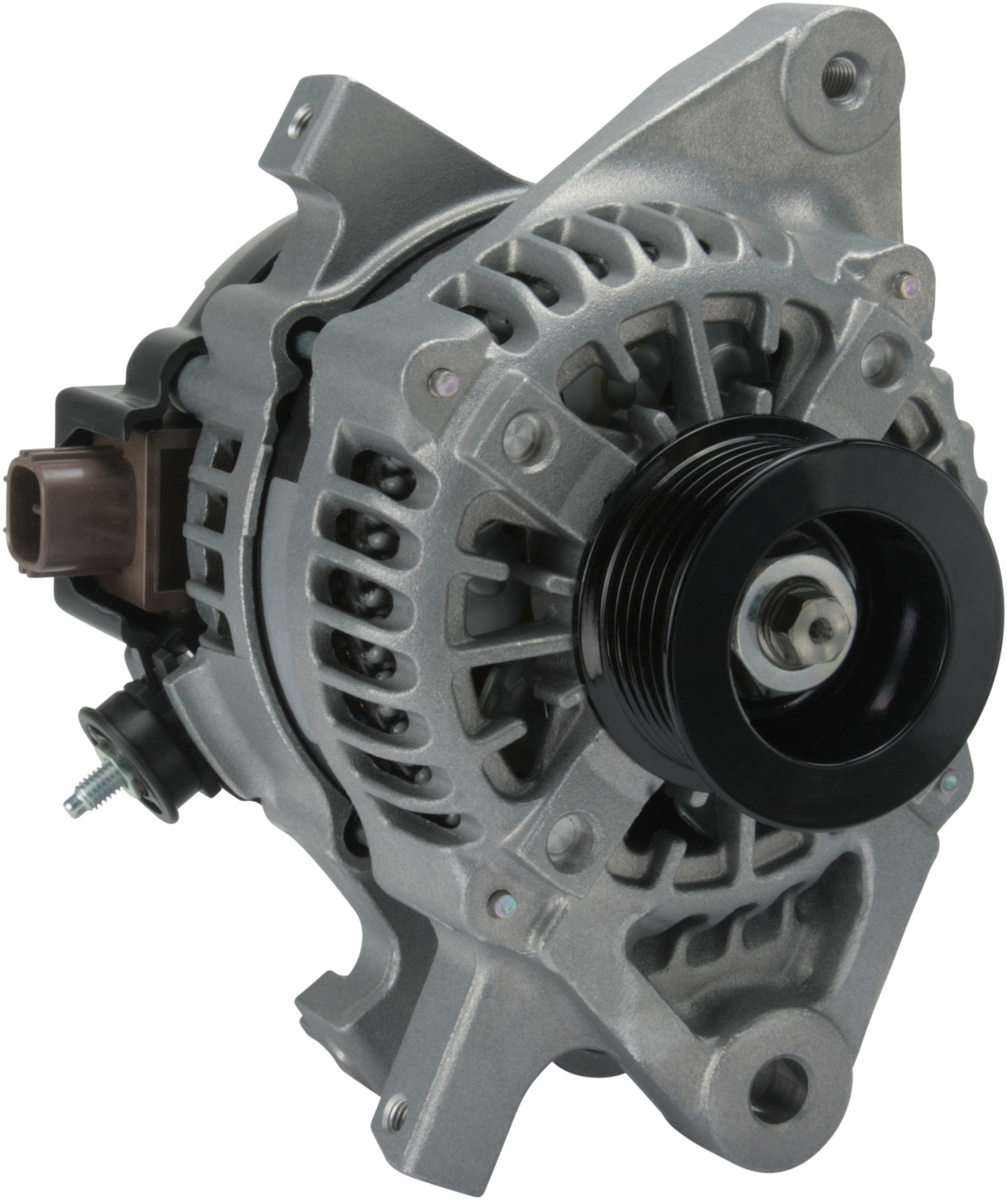

Product image - main
Trade number 114897

Details & description

Voltage 14, Amp 80, Pulley SP, Bracket Hole Size 1 11.00, Pulley Diameter 52.50, Bracket Hole Size Rear M10, D+ Size Plug, D+ Position 13, Holder Arm Width 19.00, Pulley Distance 29.50, B+ M6, Fan IF, Radius 2 83.00, Plug no. 1 PL146, Mounting Bracket Distance 36.30, Radius 85.00, Rotation CW, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 6, Regulator type IR, B+ Position 20, Belt Adjustment Bracket Hole Position 7

Product information

Electrical information

  • Voltage14
  • Amp80

Physical information

  • PulleySP
  • Bracket Hole Size 111.00
  • Pulley Diameter52.50
  • Bracket Hole Size RearM10
  • D+ SizePlug
  • D+ Position13
  • Holder Arm Width19.00
  • Pulley Distance29.50
  • B+M6

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 270600Y010TOYOTA
    • 270600Y030TOYOTA
    • 2706047050TOYOTA
    • 270600H151TOYOTA

    Competitor References

    • DRA0692AC DELCO
    • DRA0693AC DELCO
    • 553472RIAD KÜHNER
    • 553478RIAD KÜHNER
    • A6068AUTOSTARTER POLAND
    • A6379DENSOAUTOSTARTER POLAND
    • A4088AUTOSTARTER POLAND
    • A4088MMAUTOSTARTER POLAND
    • A6068DENSOAUTOSTARTER POLAND
