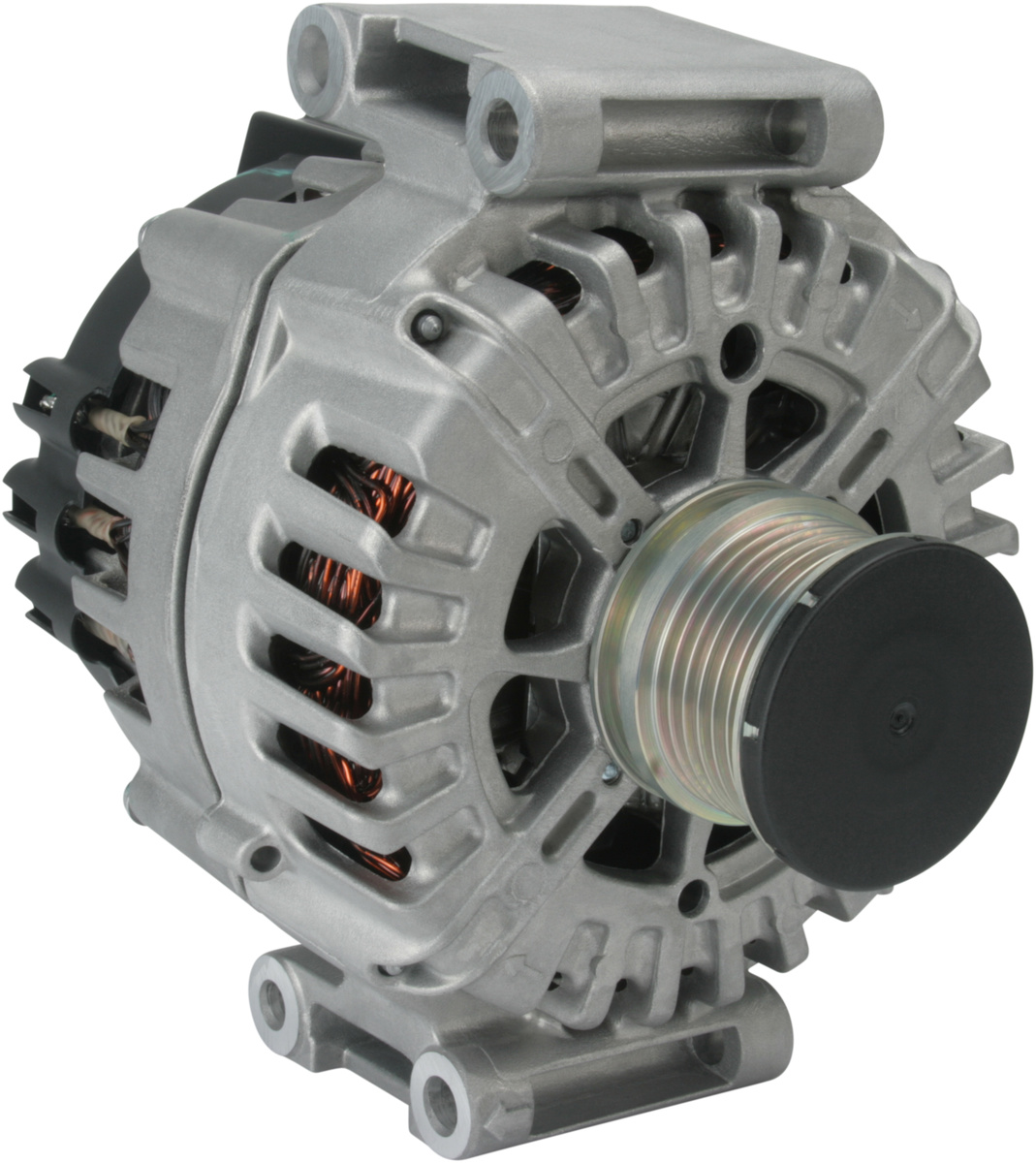

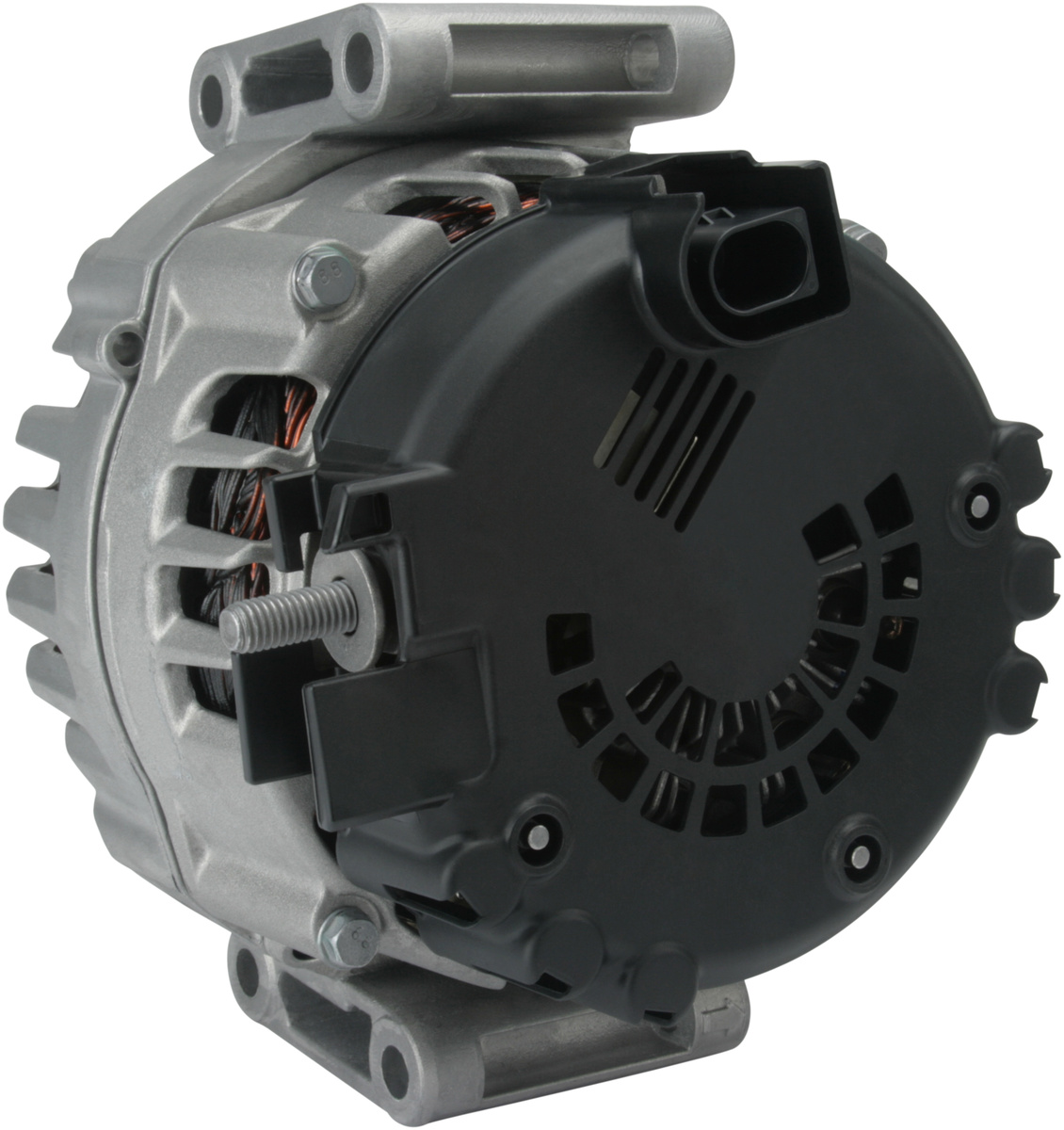

F032114876 - Alternator
Trade number 114876
Replacing and BOMs
OEM number
0009063622MERCEDES-BENZ
0131546802MERCEDES-BENZ
A0009063622MERCEDES-BENZ
A0131546802MERCEDES-BENZ
01315468020MERCEDES-BENZ
Competitor References
DRB2380AC DELCO
DRA0568AC DELCO
DRA0569AC DELCO
554017RIAD KÜHNER
553695RIAD KÜHNER
A3145PRAUTOSTARTER POLAND
0986082500BOSCH
CAL15470CASCO SRL
555923180CV PSH
555590180CV PSH
DRB2380DELCO REMY
DRA0568DELCO REMY
DRA0569DELCO REMY
2251981802DRI
286520ELSTOCK
209184ERA SPA
210897ERA SPA
210897AERA SPA
209184AERA SPA
12090360EUROTEC
113390FACROM
9090800FRIESEN
9090790FRIESEN
114876HC-CARGO
CA2072IRHC-PARTS
8EL011713951HELLA
32082500HERTH U. BUSS
22721LESTER
LRA03408LUCAS
726202VALEO
439653VALEO
440238VALEO
747114VALEO
200188VALEO
22721NWAI
ALT14466WOOD AUTO SUPPL
F032114876 - Alternator
Details & description
Voltage 14, Amp 180, Communication LIN, Pulley SP/FW, Pulley Diameter 49.60, Prod. info BN/OE, Pulley Distance 31.50, Bracket Hole Size 2 9.00, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Source Valeo, Belt Adjustment Bracket Hole 1 8.00x9.20, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 8.00, Terminal type COM, Holder Arm Width 70.00, B+ M8, Plug no. 1 PL86, Rotation CW, Position 55, B+ Position 45, Belt Adjustment Bracket Hole Position 55, Total Length 186.00
Product information
Voltage:14
Amp:180
Communication:LIN
Pulley:SP/FW
Pulley Diameter:49.60
Prod. info:BN/OE
Pulley Distance:31.50
Bracket Hole Size 2:9.00
Remarks 3:This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Source:Valeo
Belt Adjustment Bracket Hole 1:8.00x9.20
Grooves/pulley:6
Regulator type:IR
Bracket Hole Size 1:8.00
Terminal type:COM
Holder Arm Width:70.00
B+:M8
Plug no. 1:PL86
Rotation:CW
Position:55
B+ Position:45
Belt Adjustment Bracket Hole Position:55
Total Length:186.00
Replacing and BOMs
OEM number
0009063622MERCEDES-BENZ
0131546802MERCEDES-BENZ
A0009063622MERCEDES-BENZ
A0131546802MERCEDES-BENZ
01315468020MERCEDES-BENZ
Competitor References
DRB2380AC DELCO
DRA0568AC DELCO
DRA0569AC DELCO
554017RIAD KÜHNER
553695RIAD KÜHNER
A3145PRAUTOSTARTER POLAND
0986082500BOSCH
CAL15470CASCO SRL
555923180CV PSH
555590180CV PSH
DRB2380DELCO REMY
DRA0568DELCO REMY
DRA0569DELCO REMY
2251981802DRI
286520ELSTOCK
209184ERA SPA
210897ERA SPA
210897AERA SPA
209184AERA SPA
12090360EUROTEC
113390FACROM
9090800FRIESEN
9090790FRIESEN
114876HC-CARGO
CA2072IRHC-PARTS
8EL011713951HELLA
32082500HERTH U. BUSS
22721LESTER
LRA03408LUCAS
726202VALEO
439653VALEO
440238VALEO
747114VALEO
200188VALEO
22721NWAI
ALT14466WOOD AUTO SUPPL
