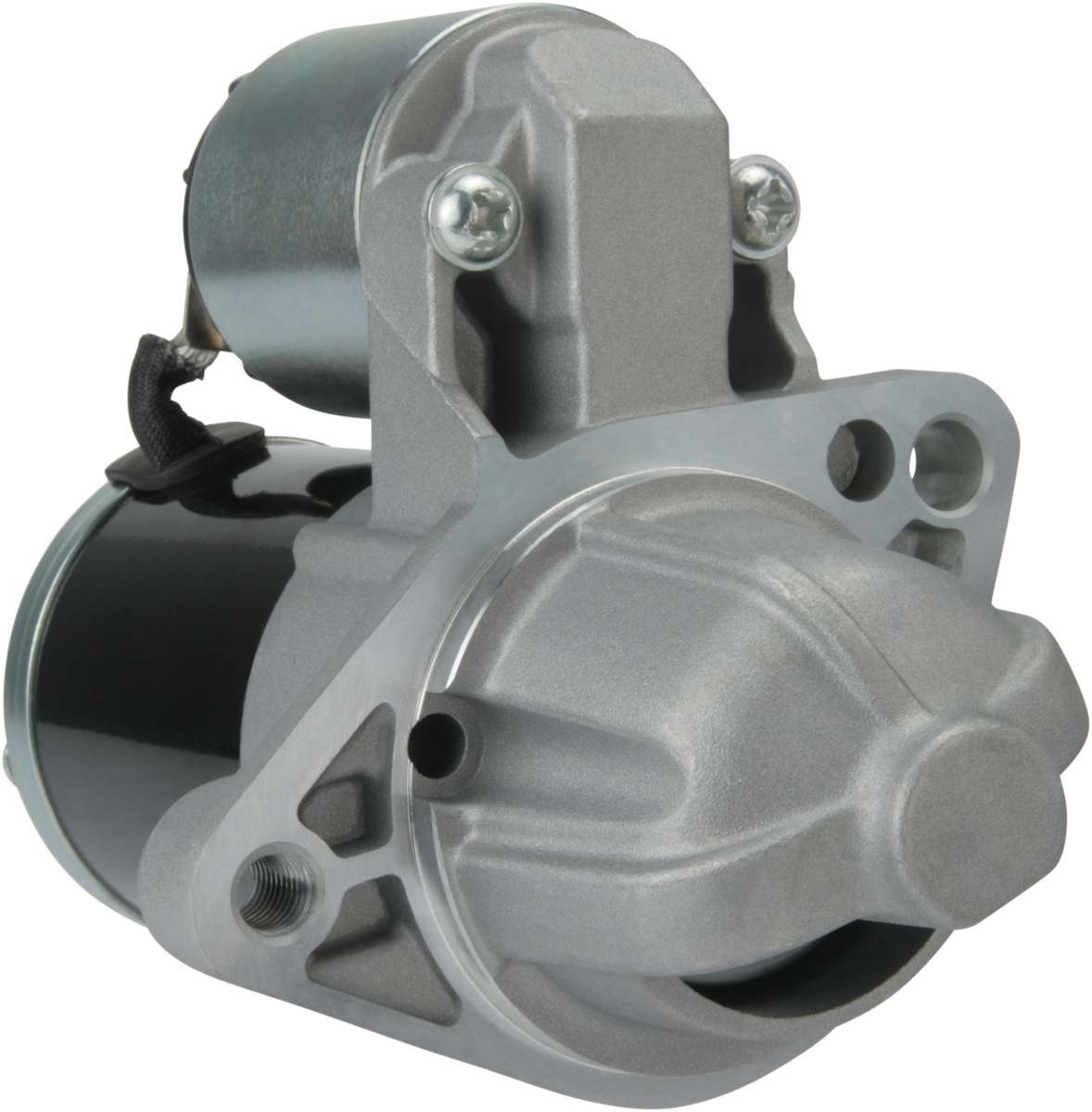

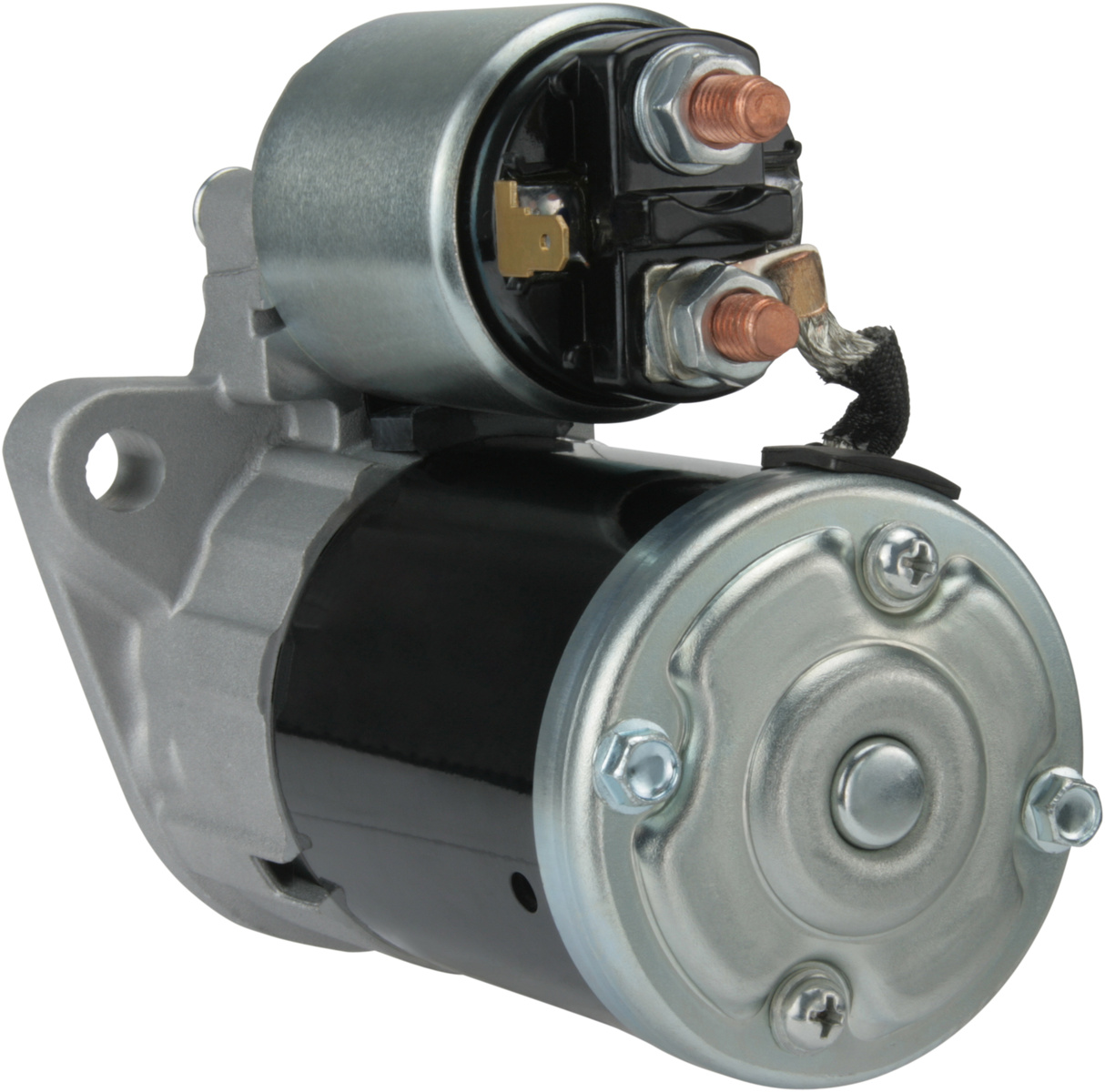

F032114871 - Starter

Trade number 114871
Product image - main
Trade number 114871

Details & description

kW 1.1, Voltage 12, No./mount. holes 2 (1), Rear Distance 123.00, Gear type GR, Prod. info BN, Front Distance 59.50, Drive Distance 28.00, No./teeth 8, B+ M8, Terminal 50 6.30, Mounting Flange 70.00, Distance 101.50, Rotation CW, Position 45, Mounting Hole 1 11.00, Amount of Mounting Holes 2 (1), Total Length 182.50

Product information

Electrical information

  • kW1.1
  • Voltage12

Catalogue information

  • Prod. infoBN

Physical information

  • No./mount. holes2 (1)
  • Rear Distance123.00
  • Gear typeGR
  • Front Distance59.50
  • Drive Distance28.00
  • No./teeth8
  • B+M8
  • Terminal 506.30
  • Mounting Flange70.00
  • Suggested Products

    Replacing and BOMs

    OEM number

    • M000T36971MITSUBISHIBOM
    • M000T36971ZEMITSUBISHIBOM
    • M0T36971MITSUBISHIBOM
    • M0T36971ZEMITSUBISHIBOM
    • M2T46981MITSUBISHI
    • 93194147OPEL
    • 95514185OPEL
    • 4709919OPEL
    • 93134147OPEL
  • Competitor References

    • DRS0642AC DELCO
    • DRS0642NAC DELCO
    • 254676AD KÜHNER
    • S5184AUTOSTARTER POLAND
    • 0986025760BOSCH
    • CST35242CASCO SRL
    • 130570082CV PSH
    • 130588082CV PSH
    • DRS0642NDELCO REMY
  • Compatible products
