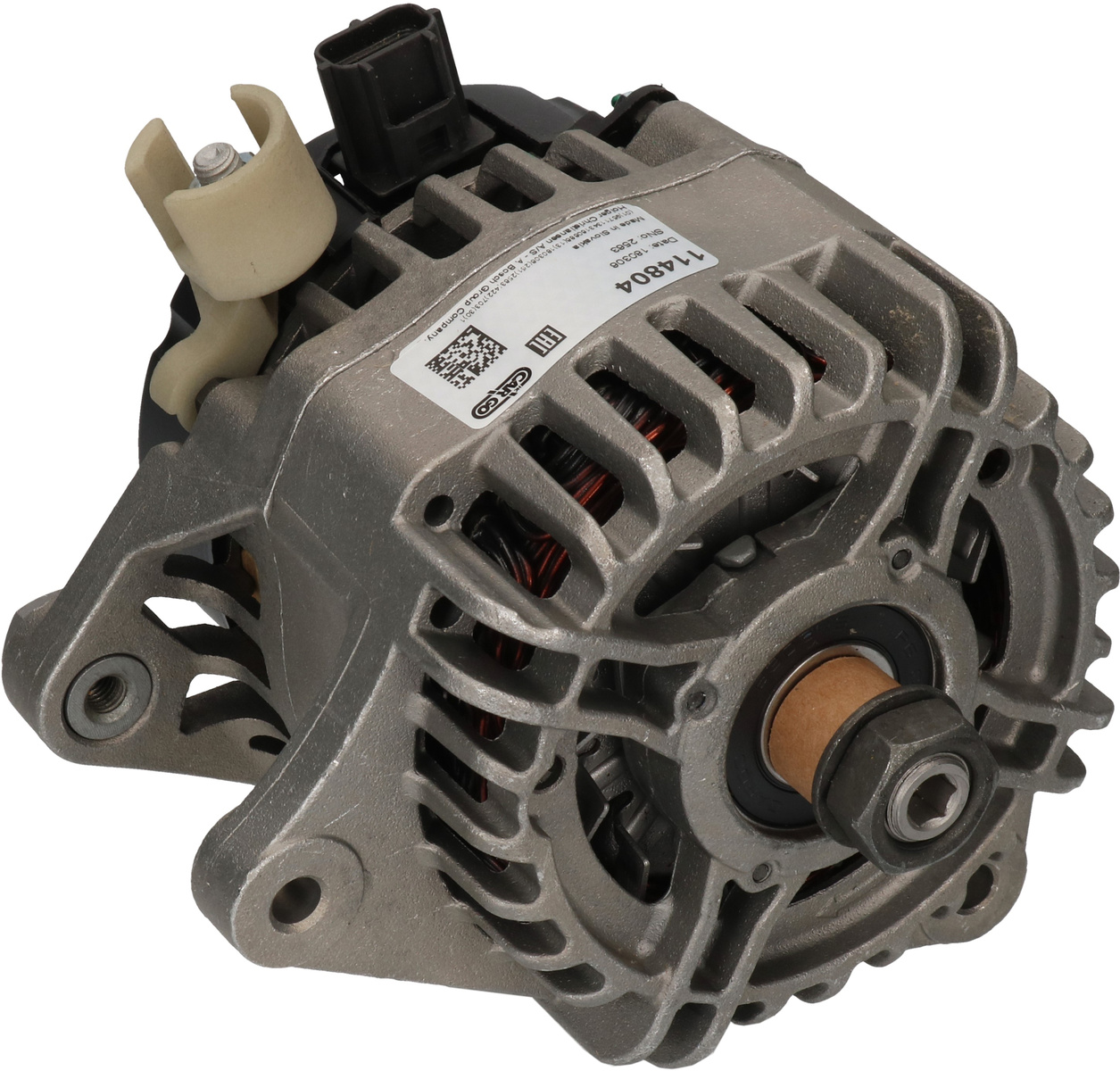

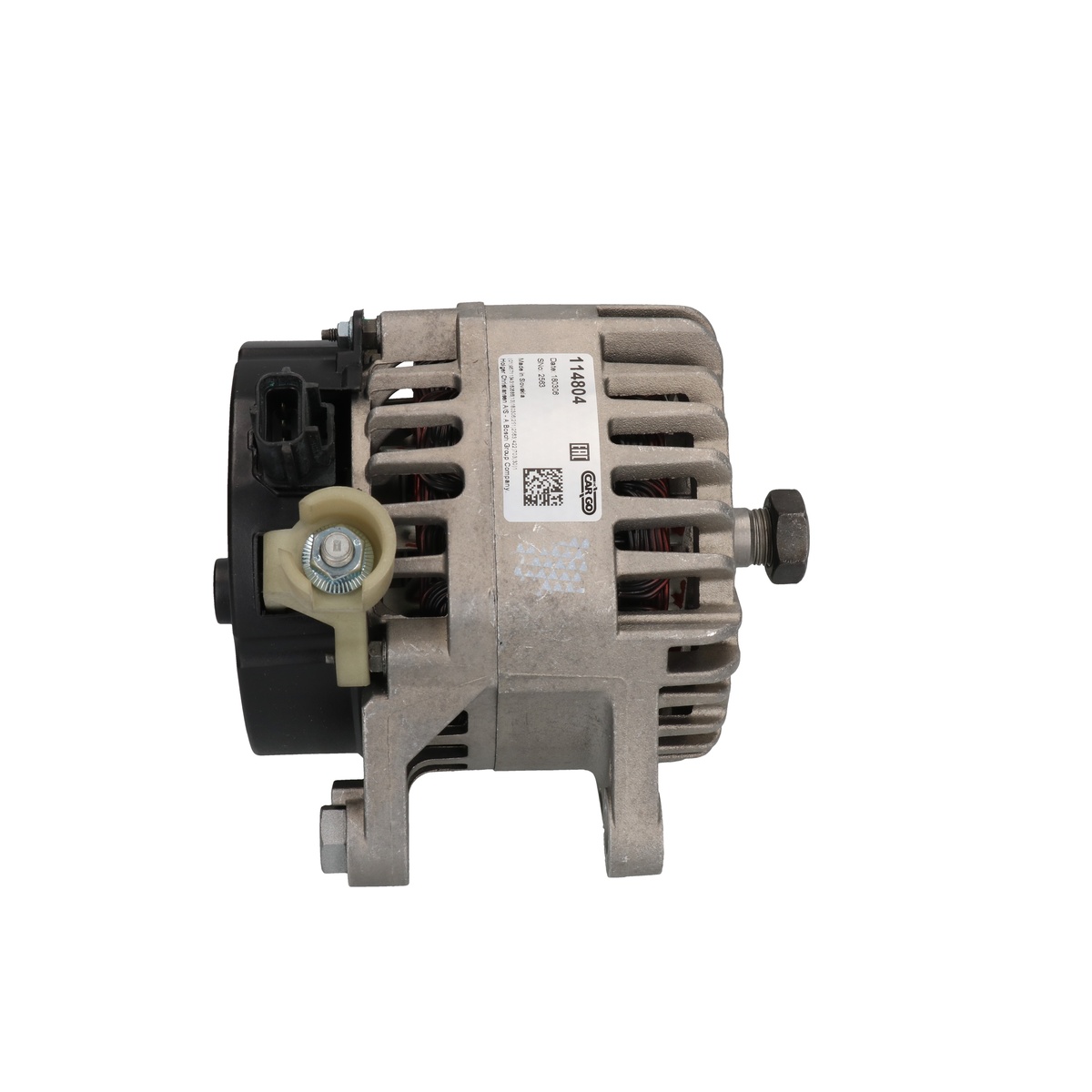

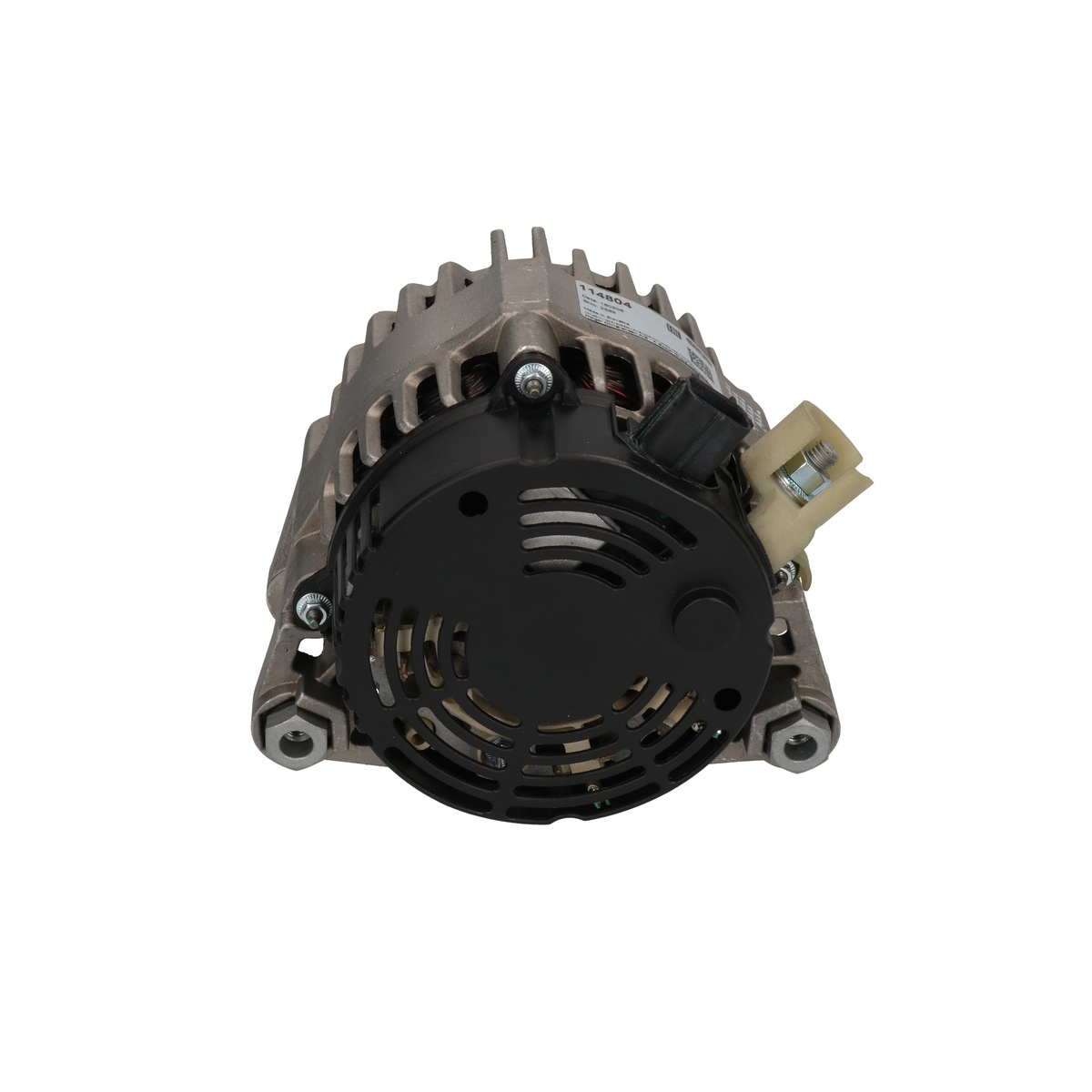

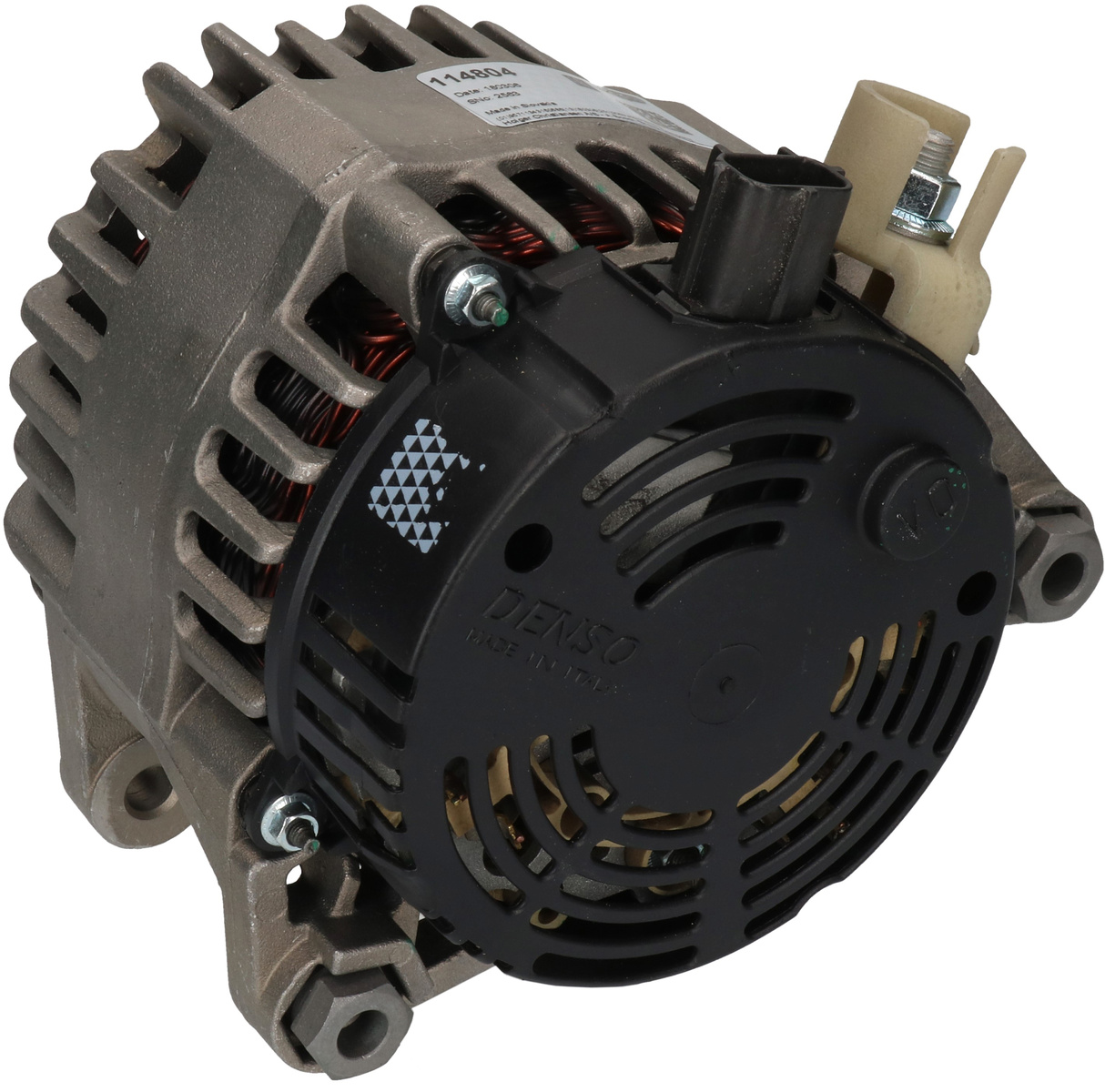

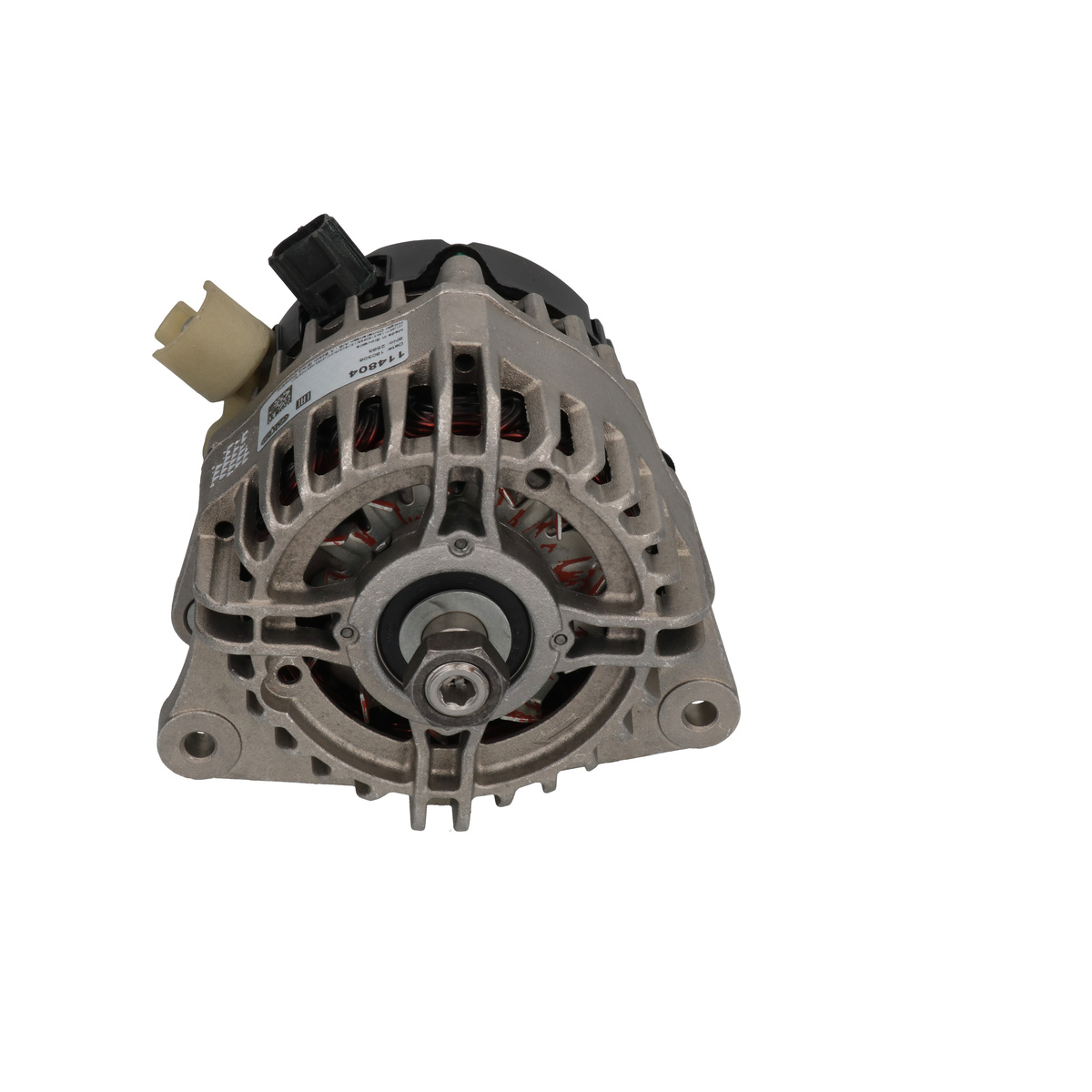

F032114804 - Alternator

Trade number 114804
Product image - main
Trade number 114804

Details & description

Voltage 14, Amp 105, Pulley w/o, Bracket Hole Size 1 8.00, Bracket Hole Size Rear M8, Holder Arm Width 14.50, B+ M8, Radius 2 86.00, Plug no. 1 PL57, Mounting Bracket Distance 52.00, Radius 82.00, Rotation CW, Belt Adjustment Bracket Hole 1 8.00, Regulator type IR, B+ Position 60, Belt Adjustment Bracket Hole Position 50

Product information

Electrical information

  • Voltage14
  • Amp105

Physical information

  • Pulleyw/o
  • Bracket Hole Size 18.00
  • Bracket Hole Size RearM8
  • Holder Arm Width14.50
  • B+M8
  • Radius 286.00
  • Plug no. 1PL57
  • Mounting Bracket Distance52.00
  • Radius82.00

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 1464564FORDBOM
    • 1496231FORDBOM
    • 4M5T10300LAFORD
    • 4M5T10300LBFORDBOM
    • 4M5T10300LCFORDBOM
    • 4M5T10300LDFORD

    Competitor References

    • DRA0087AC DELCO
    • DRA0087XAC DELCO
    • 301989RIAD KÜHNER
    • A4068AUTOSTARTER POLAND
    • A9022AUTOSTARTER POLAND
    • A4068DENSOAUTOSTARTER POLAND
    • 1986A00673BOSCH
    • 0986081090BOSCH
    • 1986A01200BOSCH
