F032114750 - Alternator

Trade number 114750

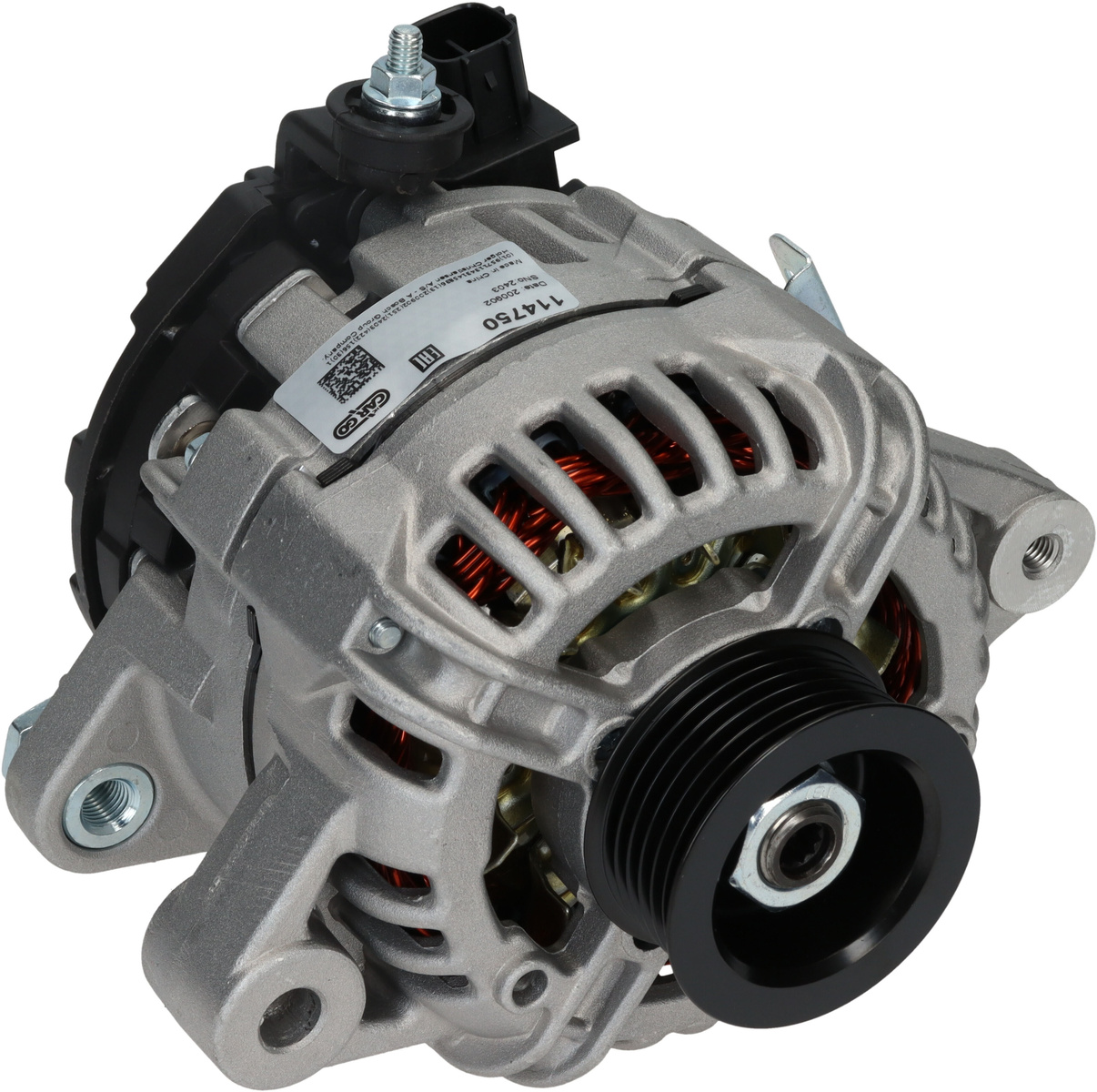

Product image - main
Trade number 114750

Details & description

Voltage 14, Amp 80, Pulley SP, Bracket Hole Size 1 10.50, Pulley Diameter 54.80, Bracket Hole Size Rear M10, D+ Size Plug, D+ Position 7, Holder Arm Width 27.00, Pulley Distance 48.00, B+ M6, Fan IF, Radius 2 90.00, Plug no. 1 PL78, Mounting Bracket Distance 39.00, Radius 80.00, Rotation CW, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 6, Position 59, B+ Position 12, Belt Adjustment Bracket Hole Position 3, Total Length 170.00

Product information

Electrical information

  • Voltage14
  • Amp80

Physical information

  • PulleySP
  • Bracket Hole Size 110.50
  • Pulley Diameter54.80
  • Bracket Hole Size RearM10
  • D+ SizePlug
  • D+ Position7
  • Holder Arm Width27.00
  • Pulley Distance48.00
  • B+M6

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 270600J051TOYOTA

    Competitor References

    • DRA0621AC DELCO
    • 301929RIAD KÜHNER
    • A0329PRAUTOSTARTER POLAND
    • A6302AUTOSTARTER POLAND
    • 0124225054BOSCHBOM
    • 0986080450BOSCH
    • 1986A01670BOSCH
    • CAL10404CASCO SRL
    • 195929080CV PSH

    • Compatible products
