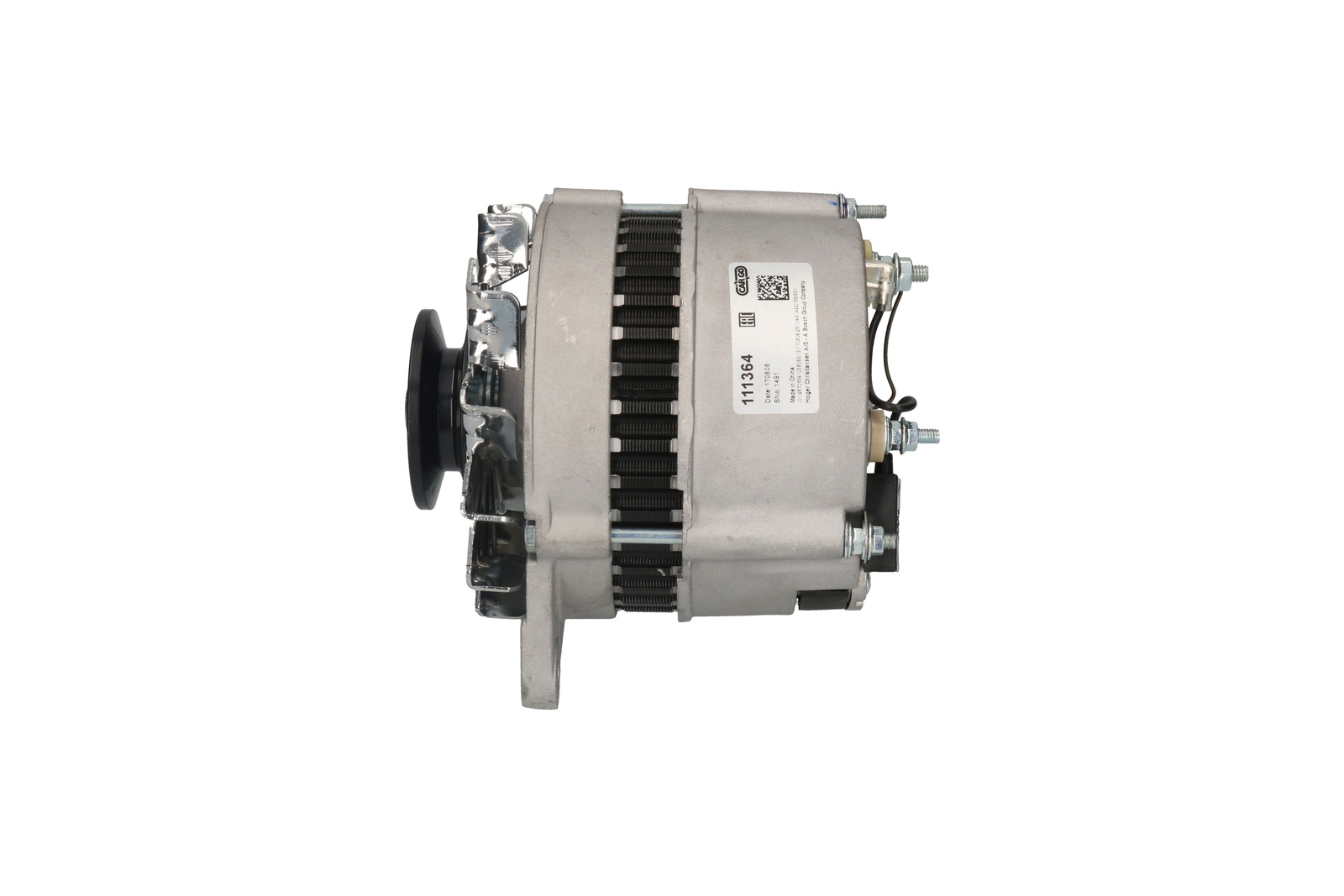

F032111364 - Alternator

Trade number 111364
Product image - main
Trade number 111364

Details & description

Voltage 14, Amp 55, Terminal W, Pulley P, W plug type M5, Pulley Diameter 63.70, Prod. info BN, Bracket Hole Size Rear 8.00, D+ Position 25, Pulley Distance 35.50, Servicing Ford, Rover, Mounting Bracket Distance 81.00, Radius 86.00, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 1, Regulator type IR, Bracket Hole Size 1 8.00, D+ Size Plug, Holder Arm Width 12.50, B+ M6-6.30, Radius 2 83.50, Plug no. 1 PL22, Rotation CW, Position 45, B+ Position 14, Belt Adjustment Bracket Hole Position 10, Total Length 166.00

Product information

Electrical information

  • Voltage14
  • Amp55
  • TerminalW

Catalogue information

  • Prod. infoBN
  • ServicingFord, Rover

Physical information

  • PulleyP
  • W plug typeM5
  • Pulley Diameter63.70
  • Bracket Hole Size Rear8.00
  • D+ Position25
  • Pulley Distance35.50
  • Mounting Bracket Distance81.00
  • Radius86.00
  • Belt Adjustment Bracket Hole 1M8

    • Suggested Products

    Replacing and BOMs

    OEM number

    • C000900010160AGCO (DEUTZ-ALLIS)
    • 3648444M91ARGO
    • 231295A1CASE
    • 92294C1CASE
    • K956426CASE
    • CT6005701122CLAAS
    • 1005270FORD
    • 1005348FORD
    • 5026107FORD

    • Competitor References

    • DRA3830AC DELCO
    • DRA6060AC DELCO
    • DRA3850AC DELCO
    • DRA3860AC DELCO
    • DRA3567AC DELCO
    • 30293RIAD KÜHNER
    • 30306RIAD KÜHNER
    • 30561RIAD KÜHNER
    • 30600RIAD KÜHNER

    • Compatible products
