F032111204 - Alternator

Trade number 111204

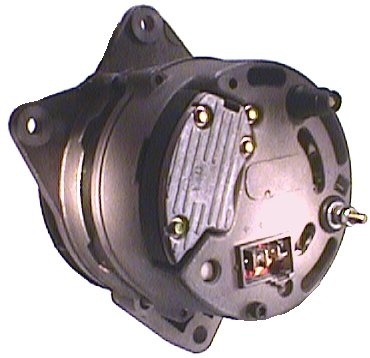

Product image - main
Trade number 111204

Details & description

Voltage 14, Amp 70, Pulley P, W plug type M5, Radius 4 85.50, Pulley Diameter 65.00, Prod. info BN, D+ Position 30, Pulley Distance 54.00, Radius 3 85.50, Belt Adjustment Bracket Hole 3 8.30, Radius 84.00, Belt Adjustment Bracket Hole 1 8.30, Grooves/pulley 1, Regulator type IR, Bracket Hole Size 1 8.30, Belt Adjustment Bracket Hole 2 8.30, D+ Size Plug, Holder Arm Width 27.00, B+ M6, Radius 2 85.50, Plug no. 1 PL22, Rotation CW, Position 50, B+ Position 19, Belt Adjustment Bracket Hole Position 50;60;10, Total Length 166.00, Remarks w/ mounting bearing bracket for left and right engine side.

Product information

Electrical information

  • Voltage14
  • Amp70

Catalogue information

  • Prod. infoBN
  • Remarksw/ mounting bearing bracket for left and right engine side.

Physical information

  • PulleyP
  • W plug typeM5
  • Radius 485.50
  • Pulley Diameter65.00
  • D+ Position30
  • Pulley Distance54.00
  • Radius 385.50
  • Belt Adjustment Bracket Hole 38.30
  • Radius84.00
  • Suggested Products

    Replacing and BOMs

    Competitor References

    • DRA3435AC DELCO
    • DRA3654AC DELCO
    • DRA1691AC DELCO
    • 30290RIAD KÜHNER
    • 301469RIAD KÜHNER
    • CAL25106CASCO SRL
    • CAL25105CASCO SRL
    • CAL11127CASCO SRL
    • 595035070CV PSH
