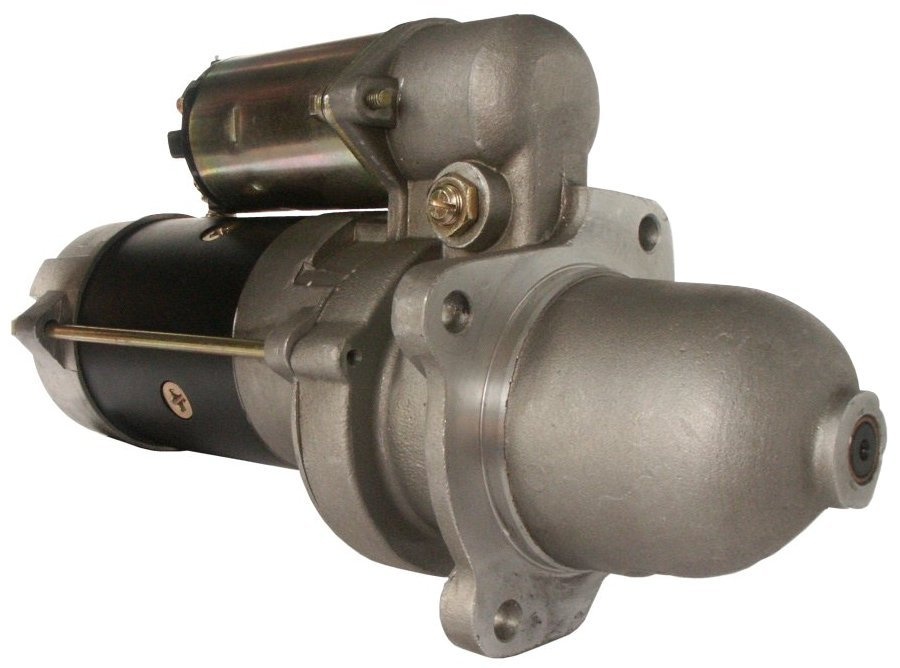

F032110590 - Starter

Trade number 110590
Product image - main
Trade number 110590

Details & description

Voltage 12, kW 2.8, Drive type Steel, Mounting Hole 2 10.50, Rear Distance 251.00, Prod. info BN, Waterproof Yes, Distance 3 89.00, Drive Distance 46.00, Distance 2 89.00, Mounting Flange 89.00, Distance 127.50, Mounting Hole 3 10.50, Oil sealed No, No./mount. holes 3 (0), Gear type GR, Front Distance 88.00, No./teeth 10, B+ M10, Terminal 50 M5, Clutch type Dry, Rotation CW, Position 4, Mounting Hole 1 10.50, Total Length 339.00, Remarks Replacing: 22MT, 27MT, 28MT., Amount of Mounting Holes 3 (0)

Product information

Electrical information

  • Voltage12
  • kW2.8

Catalogue information

  • Prod. infoBN
  • WaterproofYes
  • Oil sealedNo
  • Clutch typeDry
  • RemarksReplacing: 22MT, 27MT, 28MT.

Physical information

  • Drive typeSteel
  • Mounting Hole 210.50
  • Rear Distance251.00
  • Distance 389.00
  • Drive Distance46.00
  • Distance 289.00
  • Mounting Flange89.00
  • Distance127.50
  • Mounting Hole 310.50

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 6651258BOBCAT
    • 6651664BOBCAT
    • 6651210BOBCAT
    • 6630180BOBCAT
    • 596493R92CASE
    • 450732R91CASE
    • 347198CATERPILLAR
    • 3042511HYSTER
    • RE105298JOHN DEERE

    • Competitor References

    • DRZ5132AC DELCO
    • 254669AD KÜHNER
    • 60843AD KÜHNER
    • S9070AUTOSTARTER POLAND
    • S1052AUTOSTARTER POLAND
    • S1192SAUTOSTARTER POLAND
    • F042S03104BOSCH
    • F042003104BOSCH
    • F042S03090BOSCH
