F032110137 - Alternator

Trade number 110137

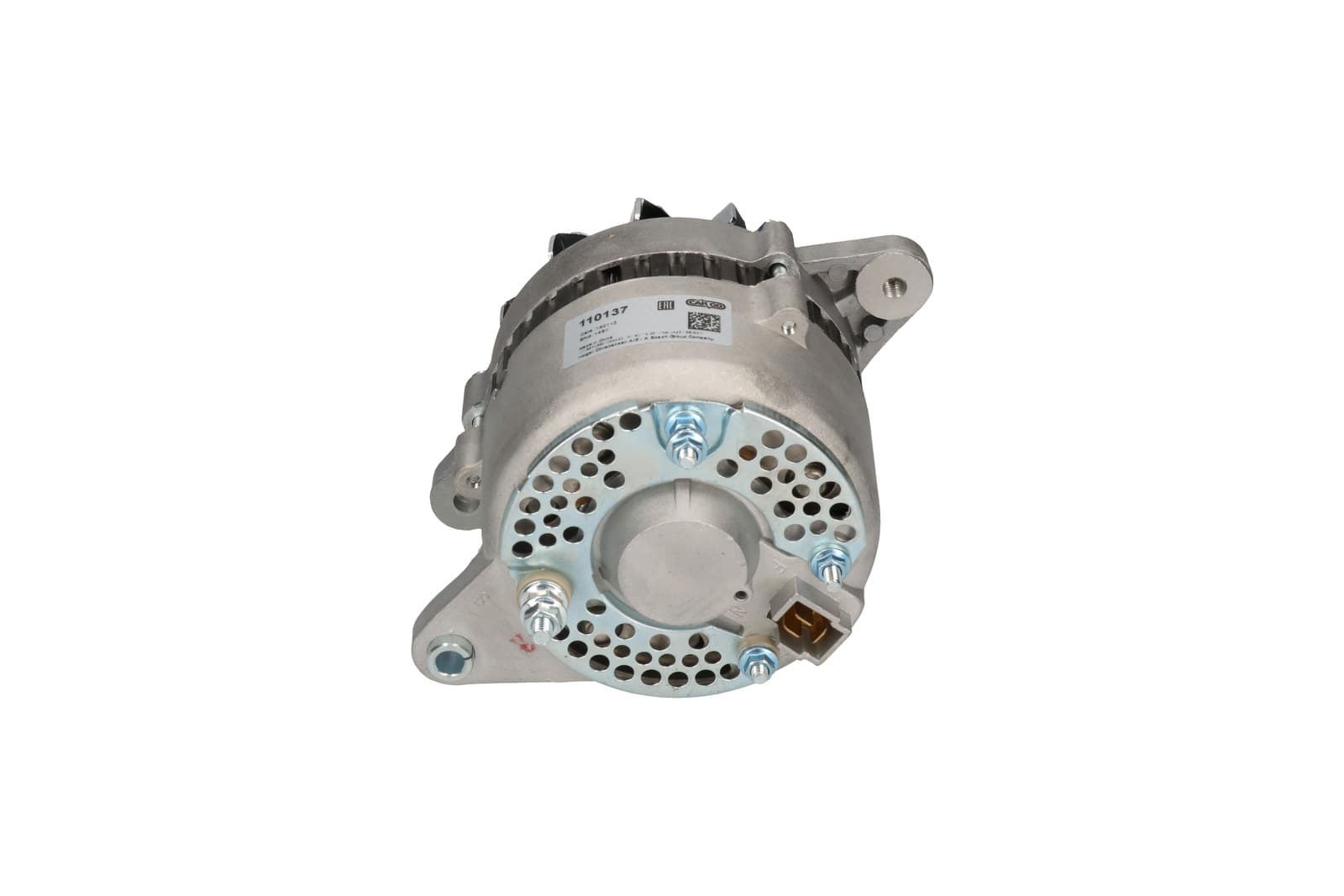

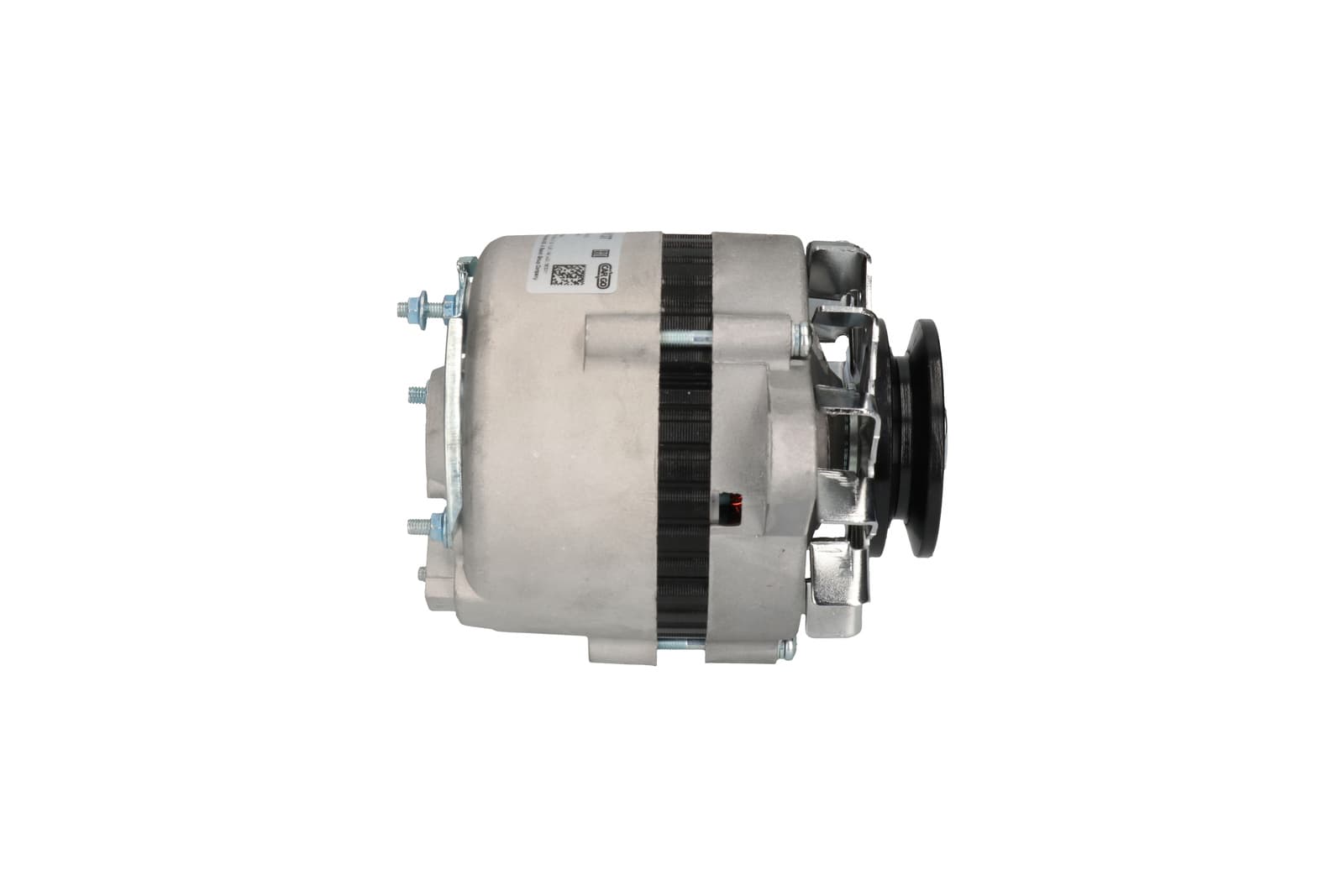

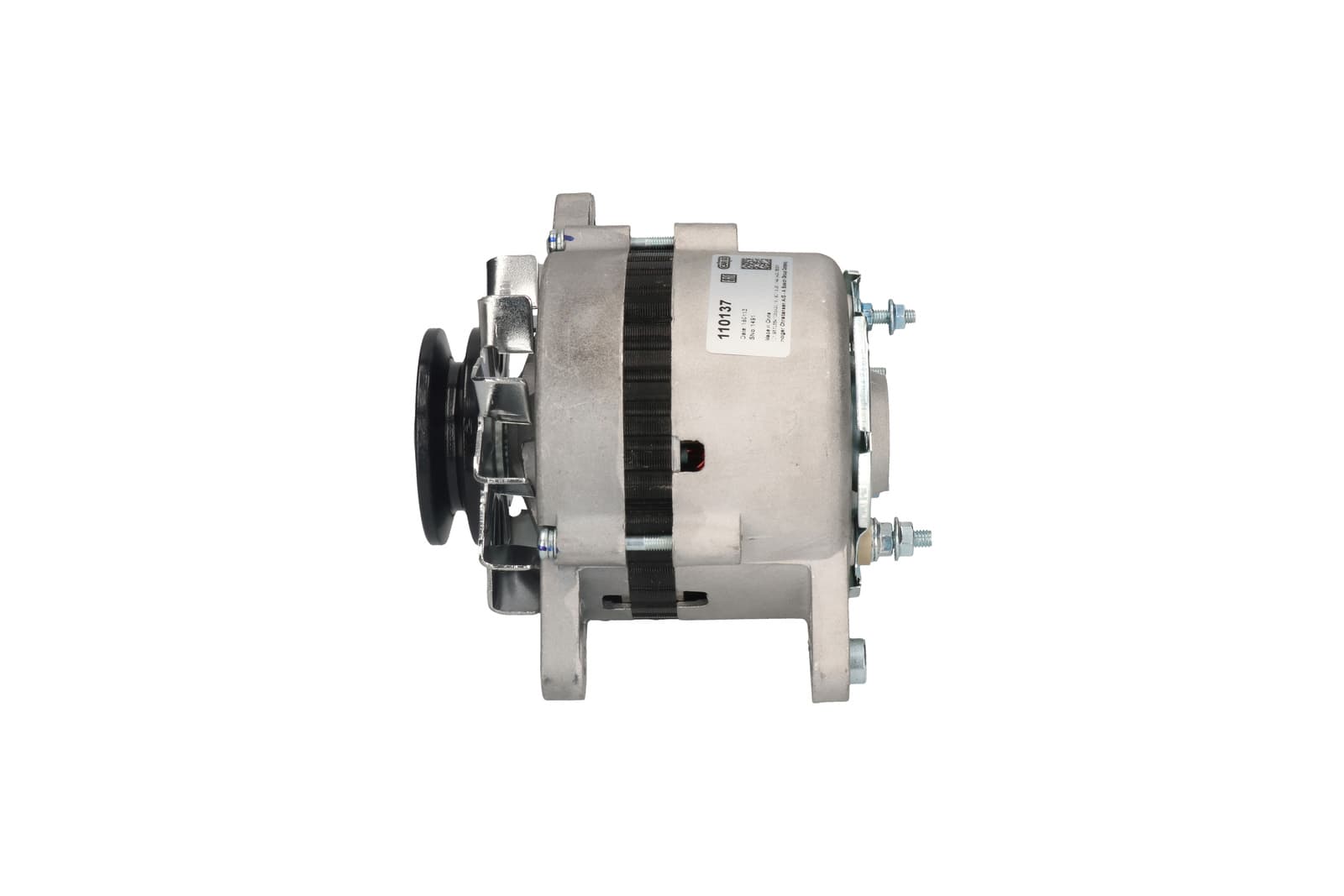

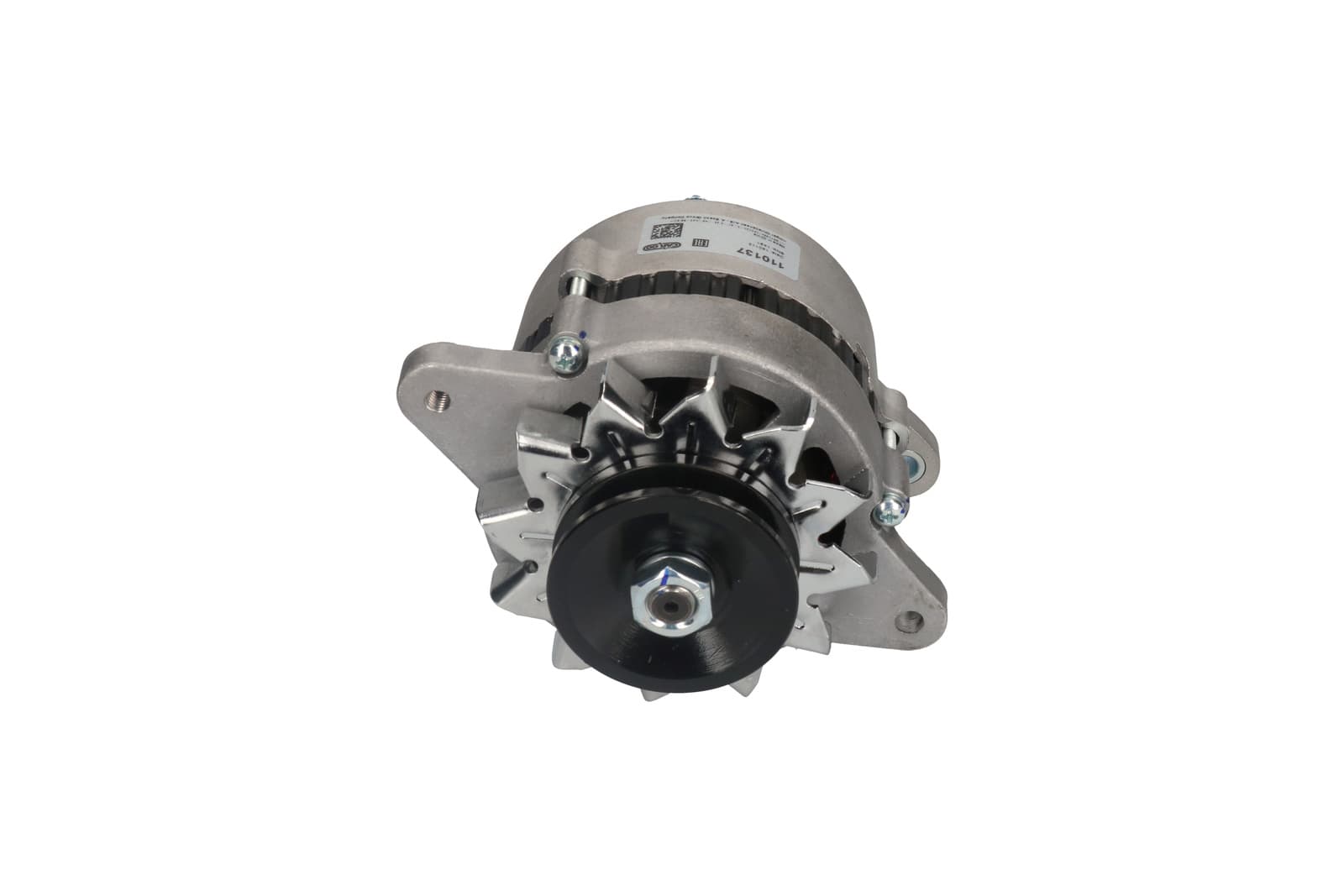

Product image - main
Trade number 110137

Details & description

Voltage 14, Amp 30, Pulley P, Bracket Hole Size 1 8.00, Pulley Diameter 70.00, Prod. info BN, Bracket Hole Size Rear 8.00, Holder Arm Width 13.00, Pulley Distance 43.00, Servicing Daihatsu, Kubota, Suzuki, Toyota, B+ M6, Radius 2 76.50, Plug no. 1 PL15, Mounting Bracket Distance 67.00, Radius 77.50, Regulator w/o, Rotation CW, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 1, Remarks Regulator: HC-CARGO 130627., B+ Position 13, Belt Adjustment Bracket Hole Position 60, Total Length 147.00

Product information

Voltage:14
Amp:30
Pulley:P
Bracket Hole Size 1:8.00
Pulley Diameter:70.00
Prod. info:BN
Bracket Hole Size Rear:8.00
Holder Arm Width:13.00
Pulley Distance:43.00
Servicing:Daihatsu, Kubota, Suzuki, Toyota
B+:M6
Radius 2:76.50
Plug no. 1:PL15
Mounting Bracket Distance:67.00
Radius:77.50
Regulator:w/o
Rotation:CW
Belt Adjustment Bracket Hole 1:M8
Grooves/pulley:1
Remarks:Regulator: HC-CARGO 130627.
B+ Position:13
Belt Adjustment Bracket Hole Position:60
Total Length:147.00

Replacing and BOMs

OEM number

AIA105ATK
ATA370ATK
ATA371ATK
1516852RDAF
2702012012000DAIHATSU
2702022011000DAIHATSU
2702031043000DAIHATSU
2702031051000DAIHATSU
2702087102000DAIHATSU
2702087103000DAIHATSU
2702087209000DAIHATSU
5812001631ISUZUBOM
5812001641ISUZUBOM
2702012011TOYOTA
2702012012TOYOTA
2702012030TOYOTA
2702022010TOYOTA
2702022011TOYOTA
2702022012TOYOTA
2702022020TOYOTA
2702022021TOYOTA
2702022022TOYOTA
2702023011TOYOTA
2702023012TOYOTA
2702023020TOYOTA
2702023021TOYOTA
2702023022TOYOTA
2702024010TOYOTA
2702024020TOYOTA
2702024021TOYOTA
2702024090TOYOTA
2702031020TOYOTA
2702031030TOYOTA
2702031031TOYOTA
2702031032TOYOTA
2702031033TOYOTA
2702031050TOYOTA
2702031051TOYOTA
2702031090TOYOTA
2702037011TOYOTA
2702038012TOYOTA
2702087102TOYOTA
2702087103TOYOTA
2702087209TOYOTA
2702087705TOYOTA
2702031034TOYOTA

Competitor References

DRA2381AC DELCO
DRA2401AC DELCO
DRA3461AC DELCO
DRA5061AC DELCO
40130AD KÜHNER
A6605SAUTOSTARTER POLAND
A6621SAUTOSTARTER POLAND
0986032381BOSCH
0986032391BOSCH
0986032401BOSCH
AL203XBOSCH
AL204XBOSCH
0986035071BOSCH
CAL40281CASCO SRL
CAL40335CASCO SRL
CAL40357CASCO SRL
195002030CV PSH
195003040CV PSH
115002040CV PSH
DRA2381DELCO REMY
DRA2401DELCO REMY
DRA3461DELCO REMY
DRA5061DELCO REMY
0210000350DENSO
0210000351DENSOBOM
0210001240DENSO
0210001241DENSO
0210001242DENSOBOM
0210001602DENSOBOM
0210001608DENSOBOM
0210002490DENSOBOM
0210002500DENSOBOM
0210002991DENSOBOM
0210003040DENSOBOM
0210003061DENSOBOM
0210004570DENSOBOM
0210004590DENSO
0210005490DENSOBOM
0210005600DENSOBOM
0210006861DENSOBOM
0210008120DENSOBOM
0210008680DENSOBOM
0210009561DENSOBOM
0210000081DENSO
0210000124DENSO
0210000160DENSO
0210000249DENSO
0210000250DENSO
0210000296DENSO
0210000457DENSO
0210000459DENSO
0210000503DENSO
0210000549DENSO
0210001601DENSO
0210001603DENSOBOM
0210002960DENSO
0210002990DENSO
0210006850DENSO
0210006851DENSOBOM
0210006860DENSO
0210009560DENSO
217001402DRI
217006352DRI
222002352DRI
235001302DRI
235002402DRI
543009352DRI
583002352DRI
270595ELSTOCK
271886ELSTOCK
271889ELSTOCK
27596ELSTOCK
210109ERA SPA
210109AERA SPA
12060326EUROTEC
118119FACROM
118120FACROM
118121FACROM
118265FACROM
119164FACROM
119770FACROM
1851600FRIESEN
3951200FRIESEN
3951207FRIESEN
3951208FRIESEN
9051200FRIESEN
9051207FRIESEN
9051208FRIESEN
9051600FRIESEN
3951231FRIESEN
9051231FRIESEN
1851200FRIESEN
110137HC-CARGO
JA130HC-PARTS
J5112000HERTH U. BUSS
J5112007HERTH U. BUSS
14515LESTER
14375LESTER
14129LESTER
14516LESTER
LRA00142LUCAS
LRA00167LUCAS
LRA02577LUCAS
LRA01099LUCAS
943346041MARELLI
943346041010MARELLI
943356934010MARELLI
944390512MARELLI
944390512000MARELLI
MAR6041MARELLI
9051200QUINTON HAZELL
9051207QUINTON HAZELL
9051208QUINTON HAZELL
9051600QUINTON HAZELL
FRA610QUINTON HAZELL
9051231QUINTON HAZELL
QA0243QUINTON HAZELL
55596SUDEST
55667SUDEST
436525VALEO
436526VALEO
VA218VALEO
12068NWAI
1155601NDWAI
12055NWAI
12055RWAI
ALT30060WOOD AUTO SUPPL
